Driver or Passenger Seat Lumbar Support Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

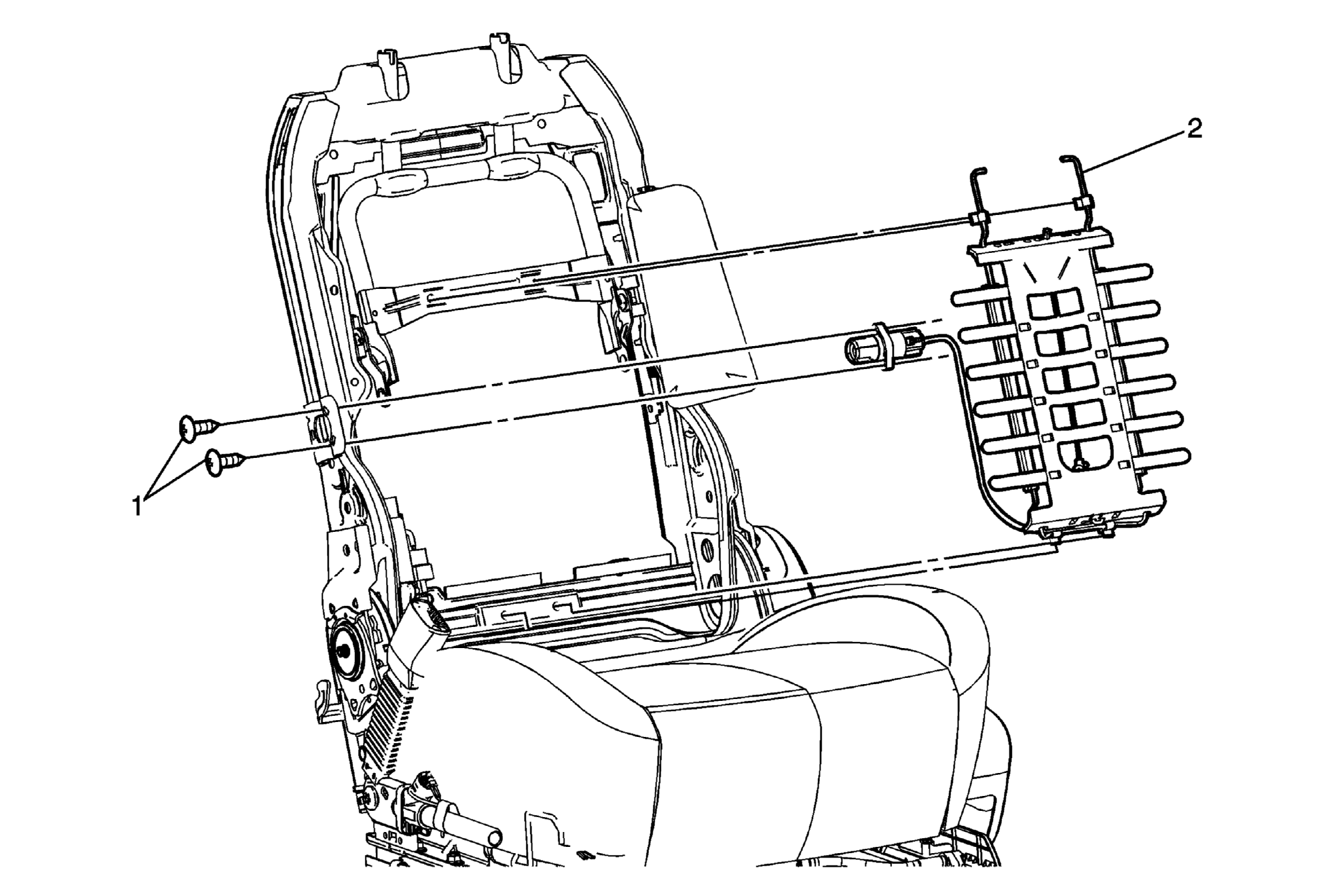

Fig 1: Front Seat Lumbar Support
GM1868495Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedures:
Remove the front seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (without KA1)  or Driver or Passenger Seat Back Cushion Cover and Pad Replacement (with KA1) .
1 Driver Seat Lumbar Support Actuator Screw (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  5 N.m (44 lb in)
2 Driver Seat Lumbar Support Assembly
Tip:  Compress the lumbar support upper tabs and pull the lumbar assembly forward from the seat to remove from the seat back frame.
