Driver or Passenger Seat Inner Recliner Finish Cover Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

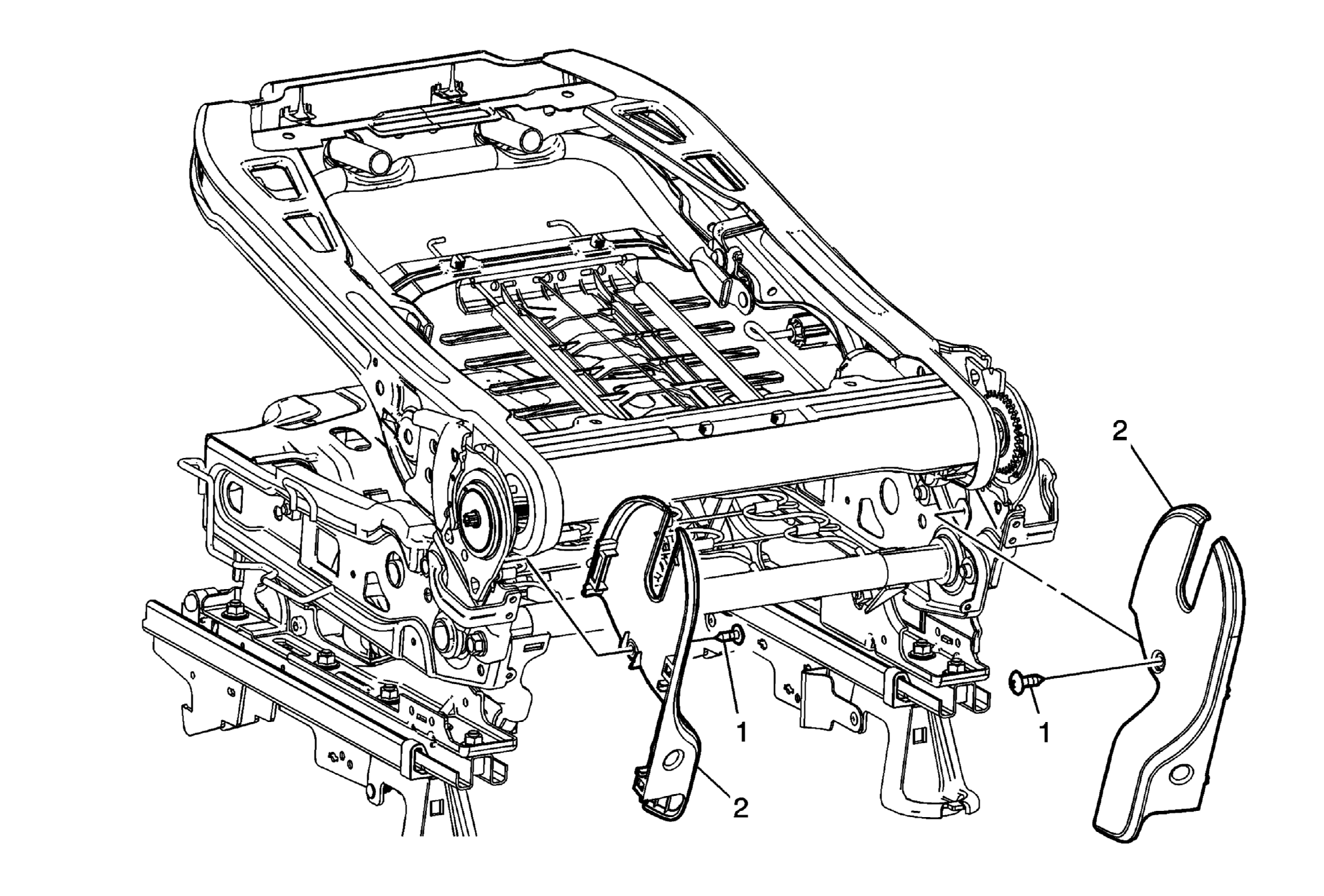

Fig 1: Driver Seat And Passenger Seat Inner Recliner Finish Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (without KA1) or Driver or Passenger Seat Back Cushion Cover and Pad Replacement (with KA1) . Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (without KA1) or Front Seat Cushion Cover and Pad Replacement (with KA1) .
1	Front Seat Inner Recliner Finish Cover Screw CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Front Seat Inner Recliner Finish Cover

Callout

Component Name

Preliminary Procedures

Remove the front seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (without KA1) or Driver or Passenger Seat Back Cushion Cover and Pad Replacement (with KA1) .
Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (without KA1) or Front Seat Cushion Cover and Pad Replacement (with KA1) .

Front Seat Inner Recliner Finish Cover Screw

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Front Seat Inner Recliner Finish Cover
