Driver or Passenger Seat Head Restraint Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

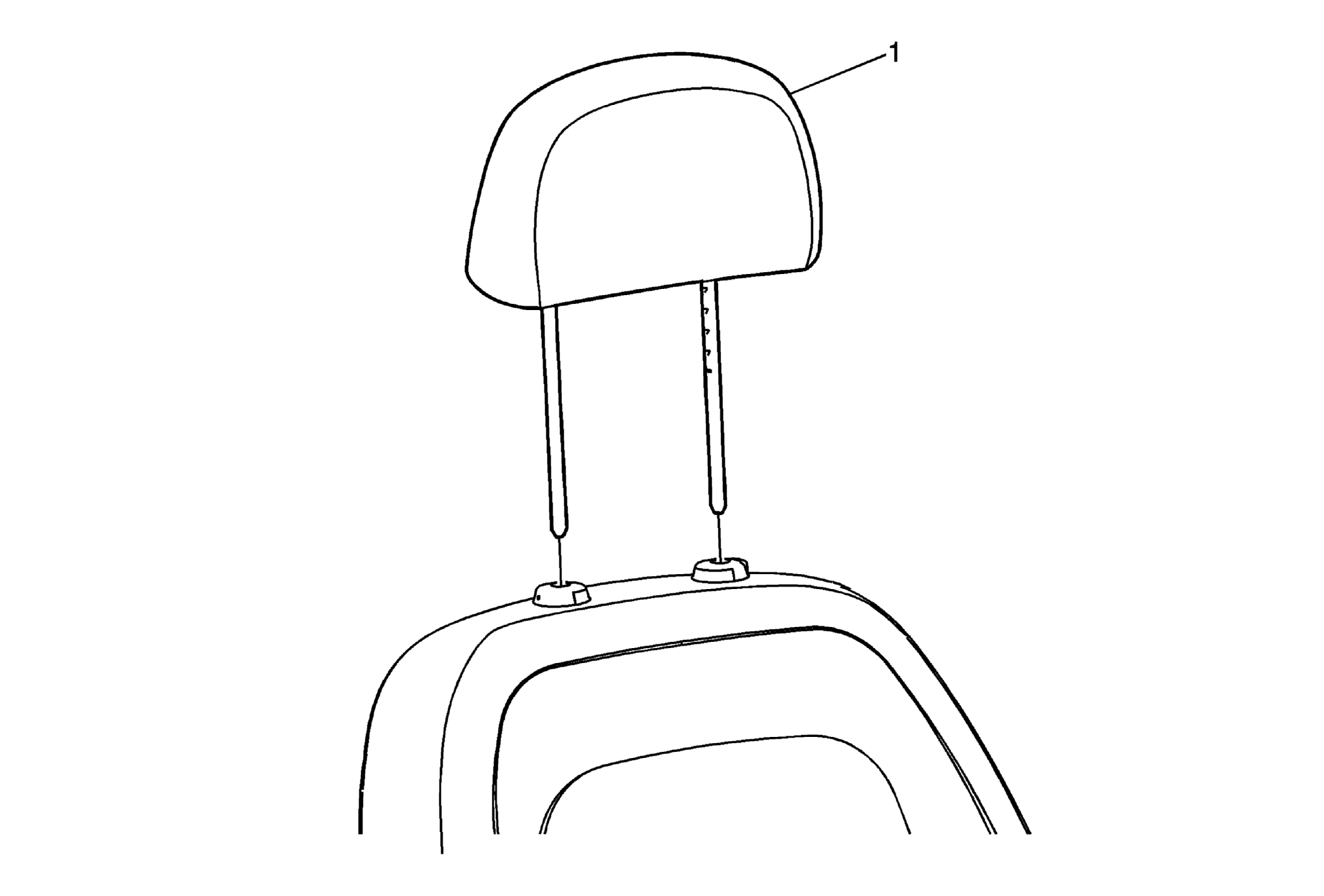

Fig 1: Front Seat Head Restraint

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Seat Head Restraint Procedure Depress the button on the left head restraint guide to raise the head restraint to the full up position. Insert a small diameter tool into the hole on the right side of the right head restraint guide and pull upward to remove.
