Driver Seat Lumbar Support Actuator Knob Bezel Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

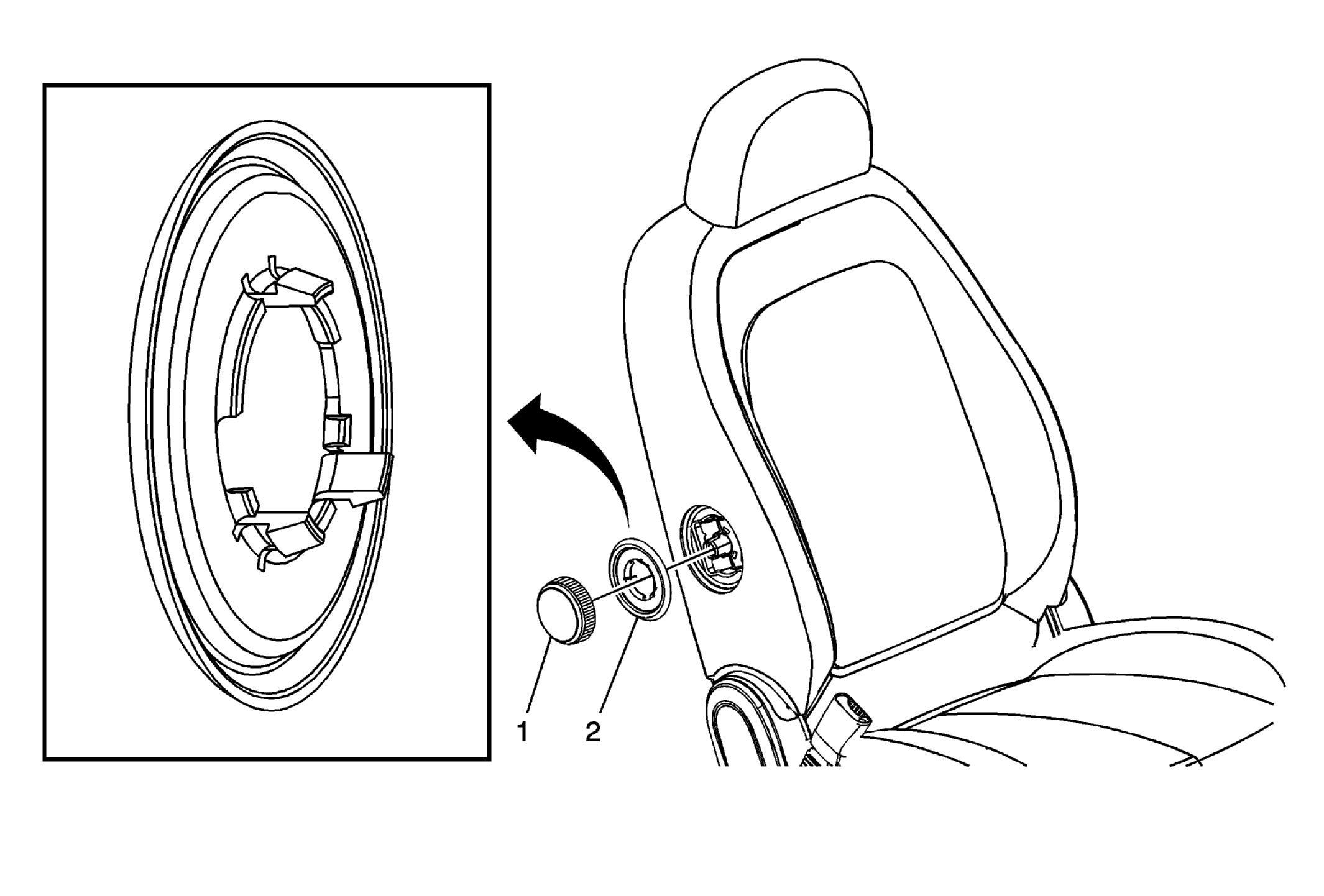

| Callout |
Component Name |
| 1 |
Driver Seat Lumbar Support Actuator Knob
Tip:
Pull outward to disengage the knob from the actuator. |
| 2 |
Driver Seat Lumbar Support Actuator Knob Bezel
Tip:
Use a small flat bladed tool and push in on the tabs behind the bezel to release the bezel from the actuator. |
