Front Side Door Emblem/Nameplate Replacement (VUE)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

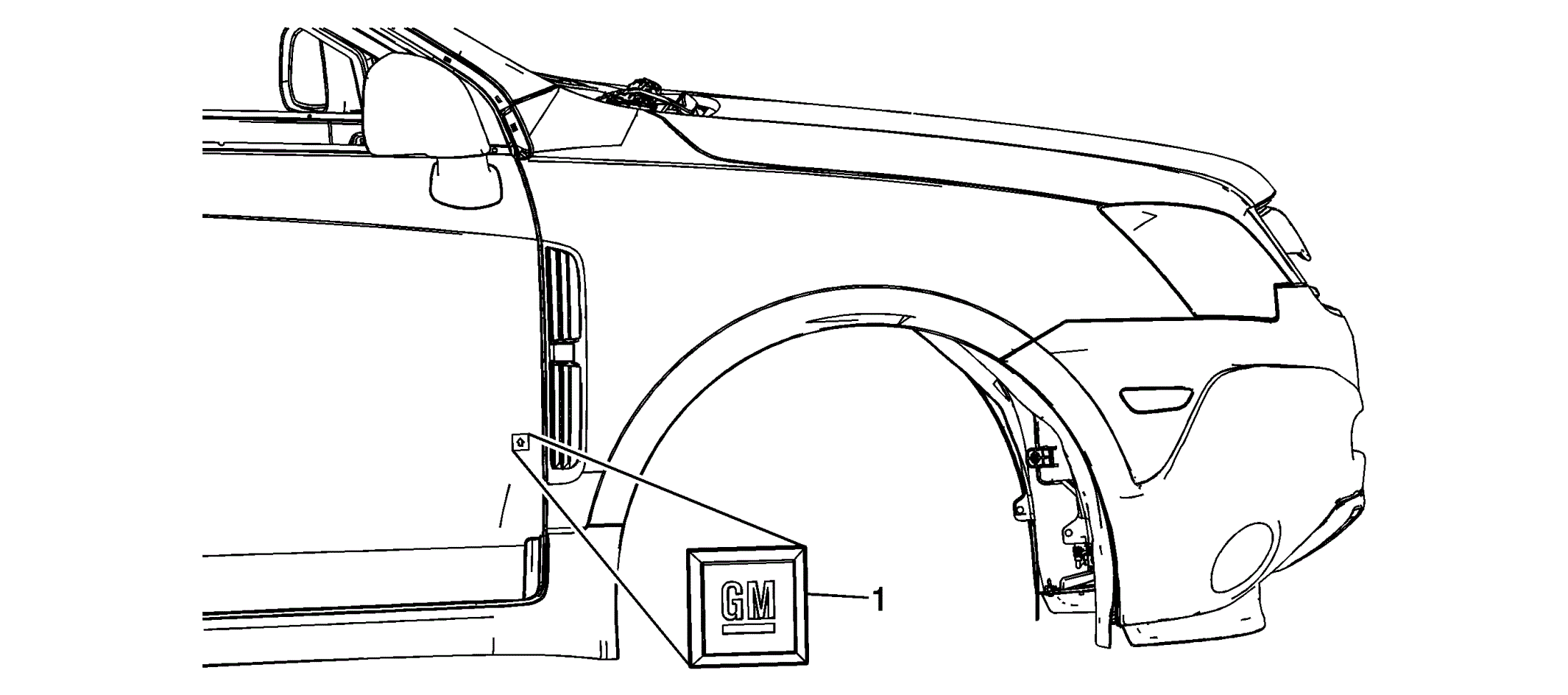

Fig 1: Front Side Door Emblem/Nameplate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Door Nameplate (GM) When removing protective liners from adhesive backed nameplates, be careful not to touch the tape with hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 or equivalent to remove the old nameplate. Clean all the adhesive residue from the door, wipe the surface dry with a clean lint-free towel prior to installing the new GM nameplate. Press the nameplate firmly to the front door in order to ensure full adhesion of the nameplate has been made. Special Tools: J 25070 Heat Gun

Callout

Component Name

Front Door Nameplate (GM)

When removing protective liners from adhesive backed nameplates, be careful not to touch the tape with hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion.
Use a J 25070 or equivalent to remove the old nameplate. Clean all the adhesive residue from the door, wipe the surface dry with a clean lint-free towel prior to installing the new GM nameplate.
Press the nameplate firmly to the front door in order to ensure full adhesion of the nameplate has been made.

Special Tools:
J 25070 Heat Gun
