Removal Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE .
Drain the differential carrier assembly. Refer to LUBRICANT REPLACEMENT - FRONT DRIVE AXLE .
Remove the stabilizer shaft link assembly. Refer to STABILIZER SHAFT LINK REPLACEMENT .
Remove the wheel drive shaft inboard flange bolts from the inner axle shaft.

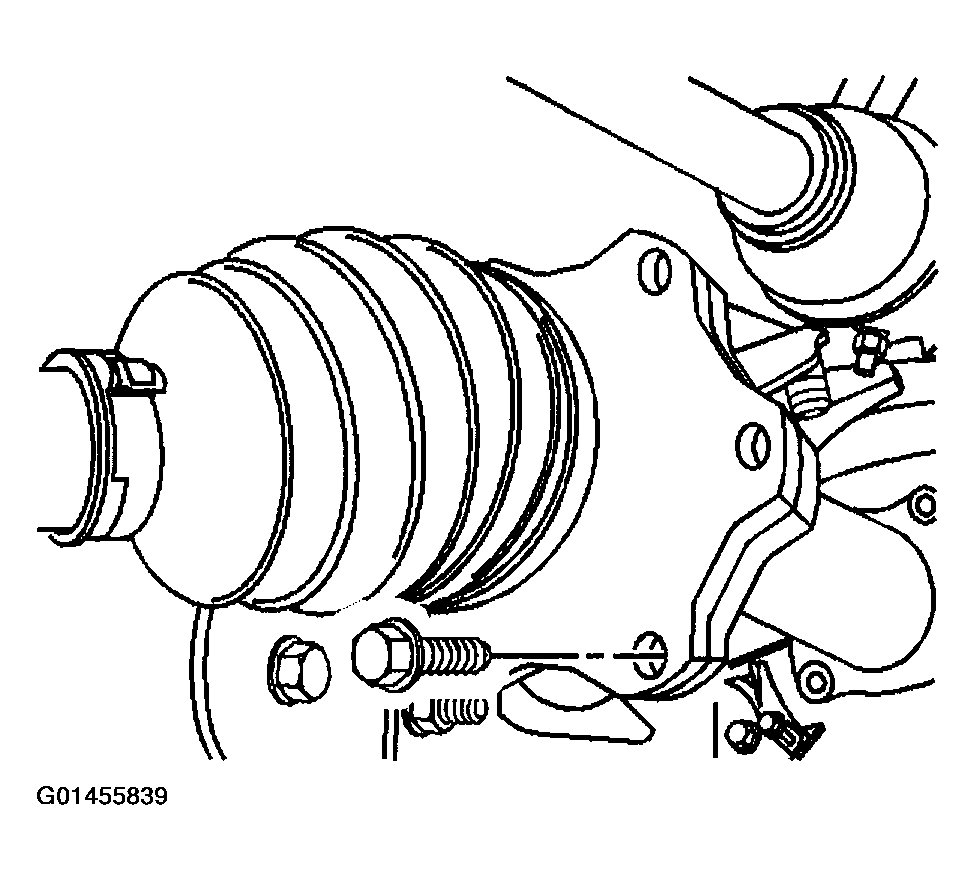

Fig 1: Removing Wheel Drive Shaft Inboard Flange Bolts From Inner Axle Shaft
Courtesy of GENERAL MOTORS CORP.
Disconnect the wheel drive shaft from the inner axle shaft.
Disconnect the inner axle shaft from the differential case side gear using a hammer and brass drift.

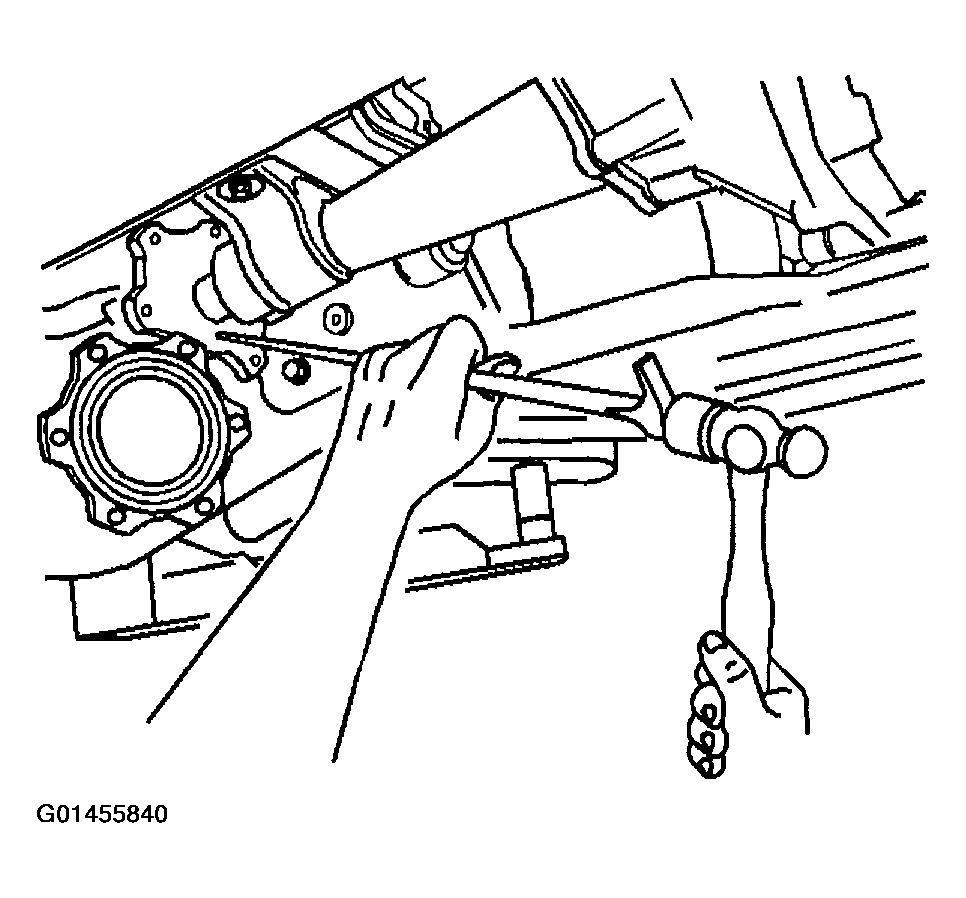

Fig 2: Disconnecting Inner Axle Shaft From Differential Case Side Gear
Courtesy of GENERAL MOTORS CORP.
Remove the inner axle shaft housing nuts from the bracket.

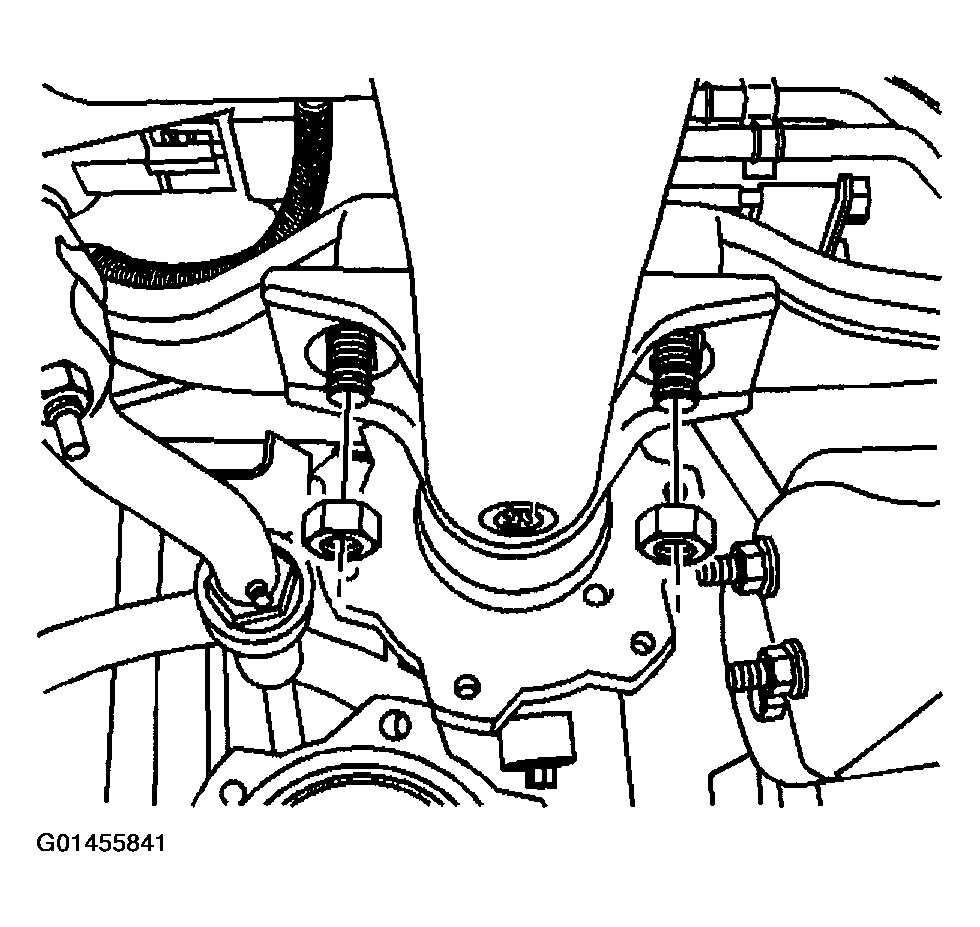

Fig 3: Removing Inner Axle Shaft Housing Nuts From Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the inner axle shaft housing bolts from the differential carrier assembly.

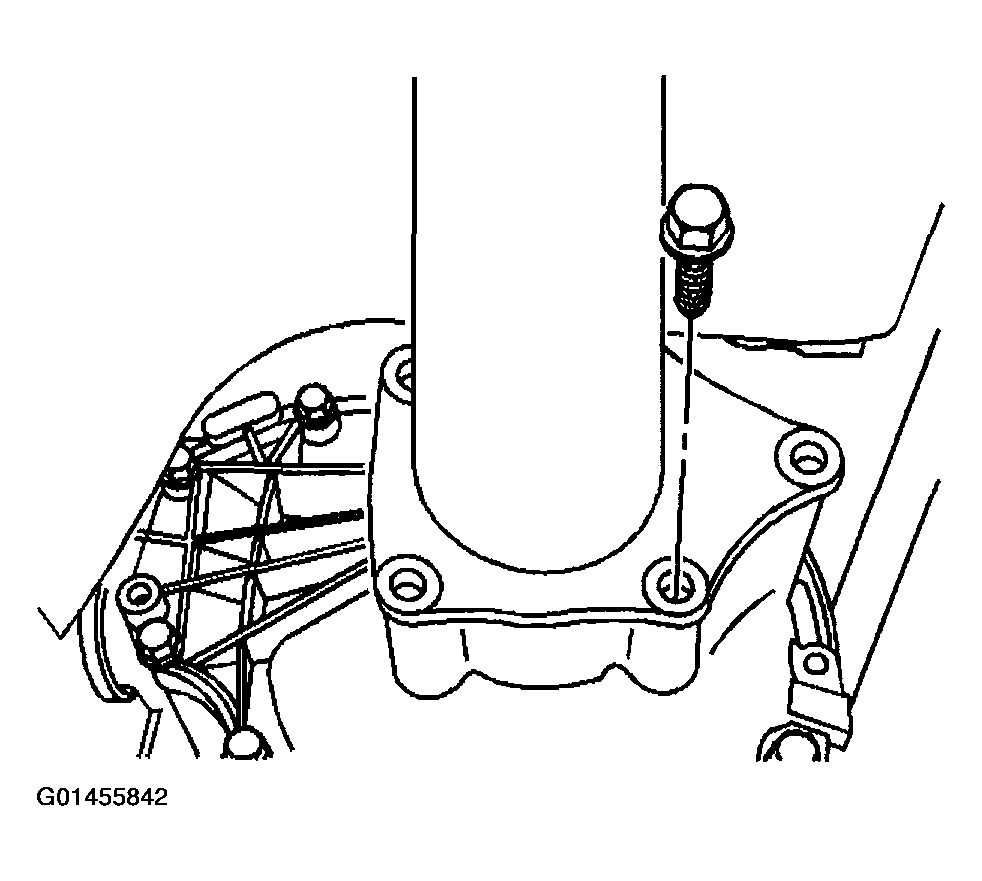

Fig 4: Removing Inner Axle Shaft Housing Bolts From Differential Carrier Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the inner axle shaft and inner axle shaft housing from the vehicle.
Remove the inner axle shaft from the inner axle shaft housing.
Remove the inner axle shaft seal and the bearing from the inner axle shaft housing. Refer to INNER AXLE SEAL AND/OR BEARING REPLACEMENT - FRONT DRIVE AXLE .
