Thermal Expansion Valve Replacement (L61/LAT)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

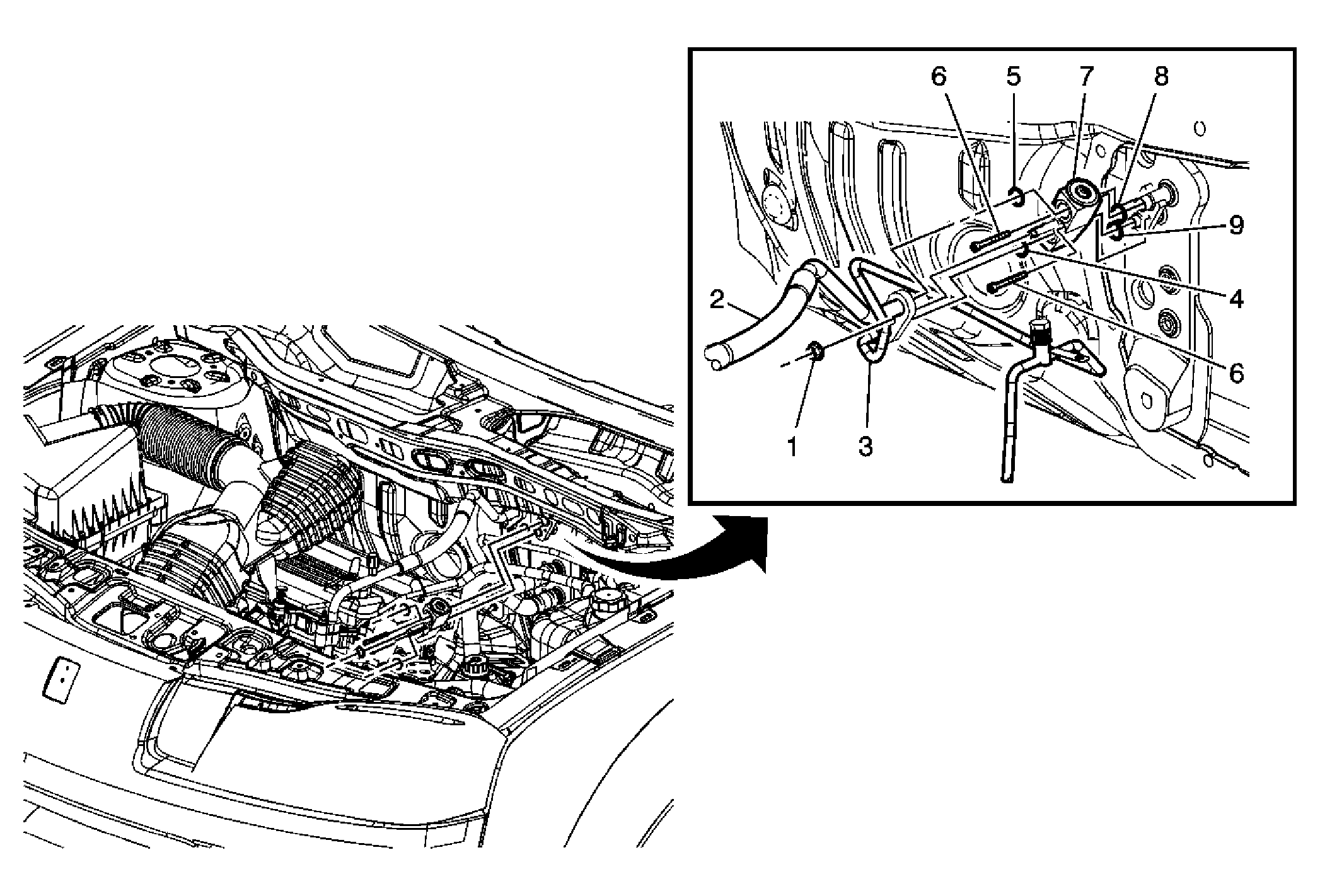

Fig 1: View Of Thermal Expansion Valve (L61/LAT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
1	Hose A/C Evaporator Nut NOTE: Refer to Fastener Notice . Tighten: 20 N.m (15 lb ft)
2	A/C Evaporator Hose
3	A/C Receiver Dehydrator Tube Assembly
4	Sealing Washer Tip: Remove and discard the seal. Refer to Sealing Washer Replacement .
5	Sealing Washer Tip: Remove and discard the seal. Refer to Sealing Washer Replacement .
6	Thermal Expansion Valve (TXV) Bolts Tighten: 8 N.m (71 lb in)
7	TXV
8	A/C Evaporator Seal Tip: Remove and discard the seal. Refer to O-Ring Replacement .
9	A/C Evaporator Seal Tip: Remove and discard the seal. Refer to O-Ring Replacement .
