Heater Outlet Hose Replacement (LAT Pump to Engine)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

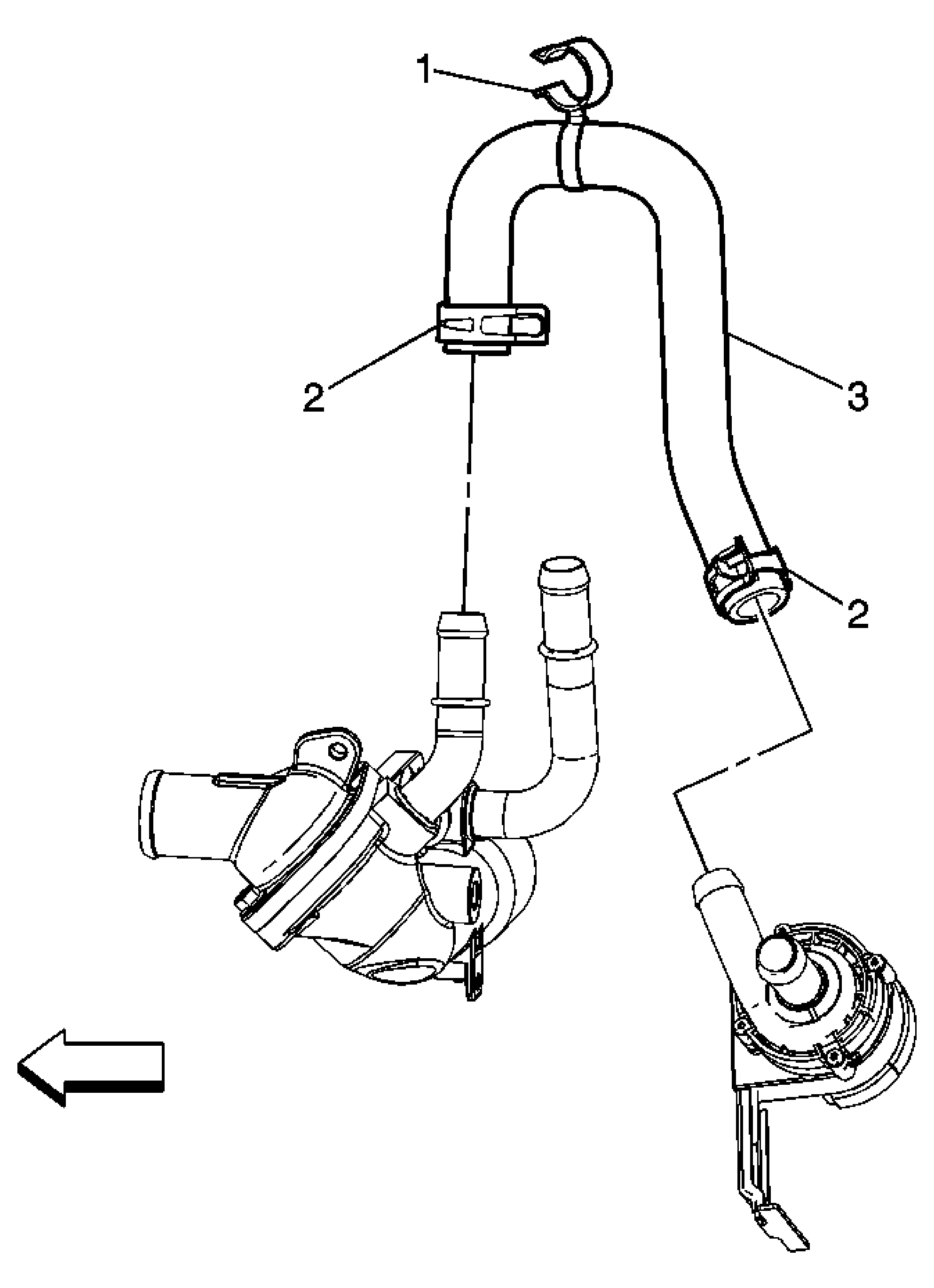

Fig 1: ViewOf Heater Outlet Hose (LAT Pump to Engine)
GM1848026Courtesy of GENERAL MOTORS CORP.
Heater Outlet Hose Replacement (LAT Pump to Engine)

Callout Component Name
Preliminary Procedure:
Partially drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (GE 47716 Fill)
1 Radiator Outlet Hose positioning clamp
2 Radiator Outlet Hose clamp (Qty: 2)
3 Radiator Outlet Hose
