Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

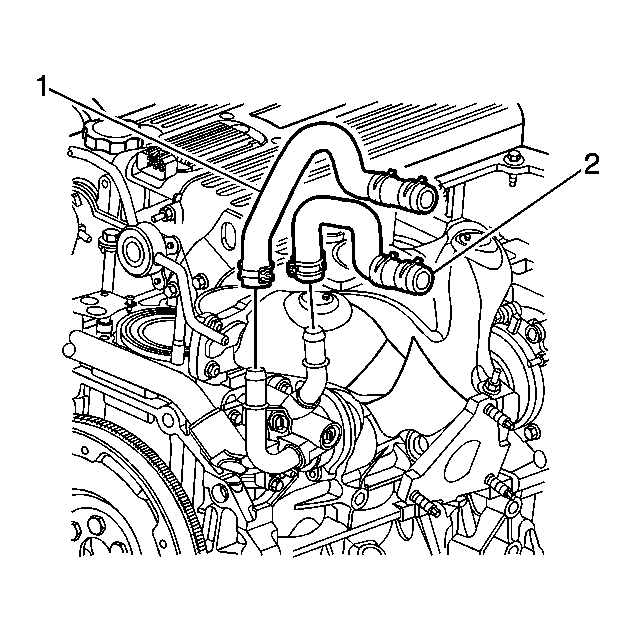

    Fig 1: Heater Hoses At Engine
    GM1644848Courtesy of GENERAL MOTORS CORP.
  1. Install the heater outlet hose (1) to the engine port.
  2. Install the heater outlet hose clamp to the engine port.

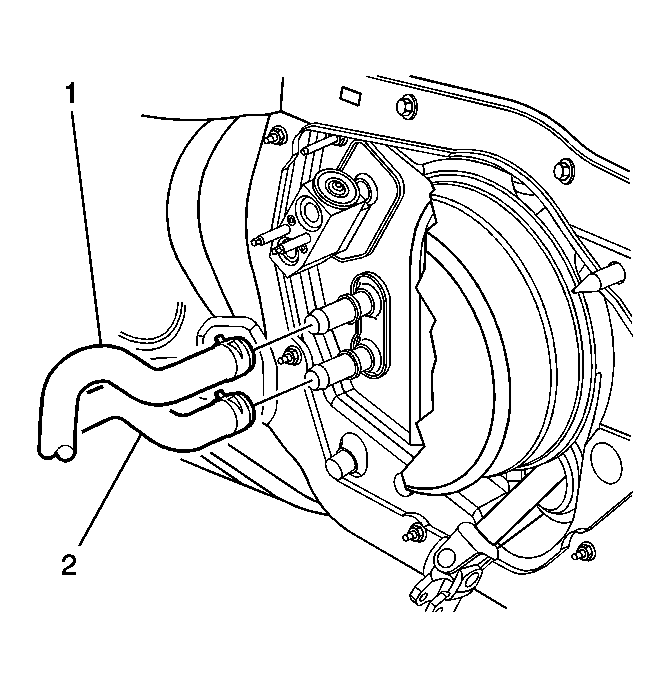

    3. Fig 2: Heater Hoses & Heater Core
    GM1644878Courtesy of GENERAL MOTORS CORP.
  3. Install the heater outlet hose (1) to the heater core.
  4. Install the heater outlet hose clamp to the heater core.
  5. Fill the engine coolant. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (GE 47716 Fill) .
