Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Do not use assembly aids or lubricants on the cylinder bore sleeve or the cylinder bore block when installing a new cylinder bore sleeve, or engine damage will occur. These items will not aid in the installation of the new cylinder bore sleeve.
    NOTE: Do not chill or heat the cylinder bore sleeve or the cylinder block when removing or installing a new cylinder bore sleeve. Chilling or heating the cylinder bore sleeve or the cylinder block will cause engine damage and will not aid the removal or installation of the new cylinder bore sleeve.

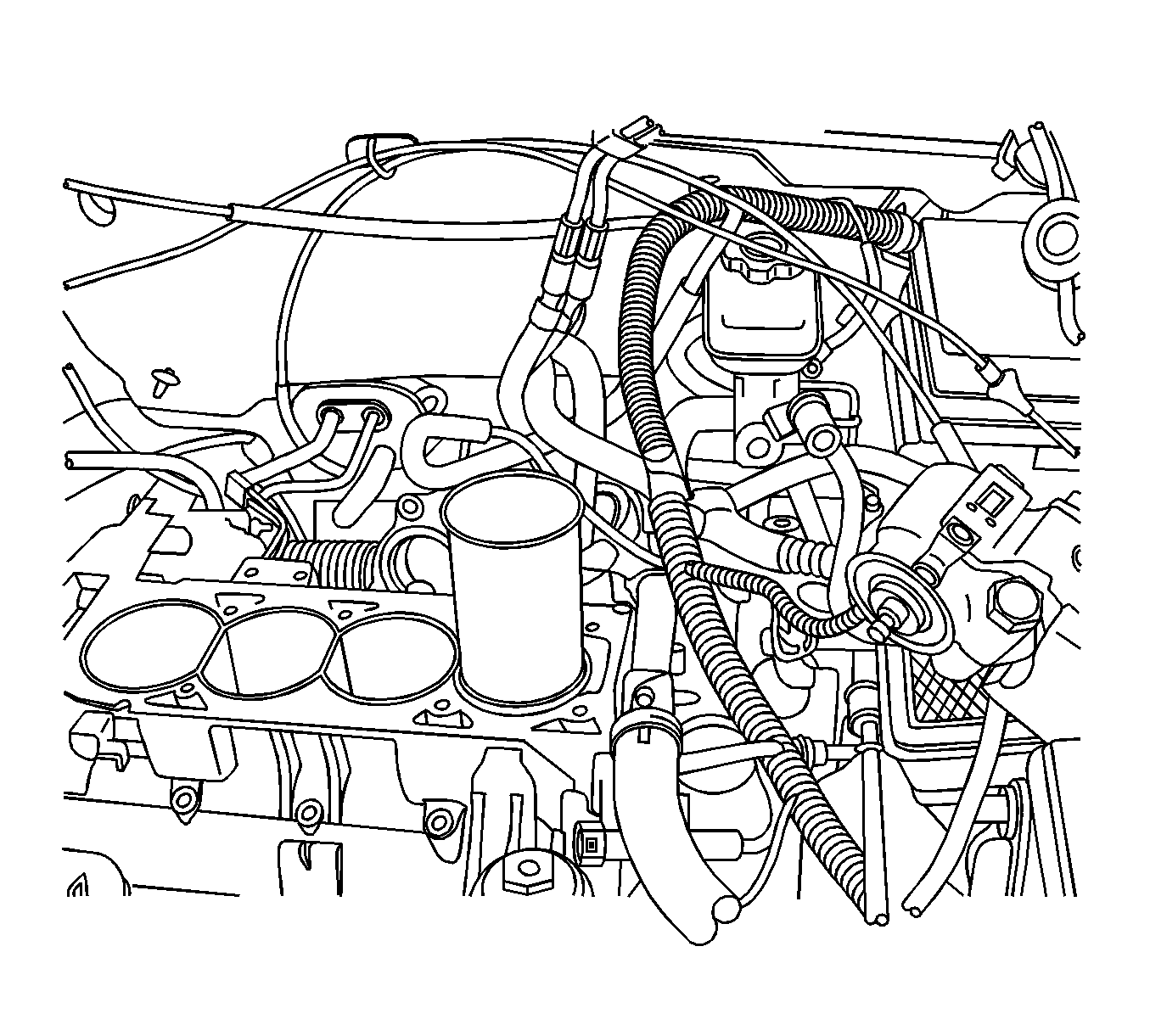

    Fig 1: Removing Cylinder Bore Liner From The Engine Block
    GM1333497Courtesy of GENERAL MOTORS CORP.
  1. Place the NEW cylinder bore sleeve onto the cylinder block.
  2. Install EN 45680-851 fixture and EN 45680-853 cylinder bore sleeve installer assembly over the cylinder bore sleeve and onto the cylinder block. Do not apply downward pressure to the cylinder bore sleeve.

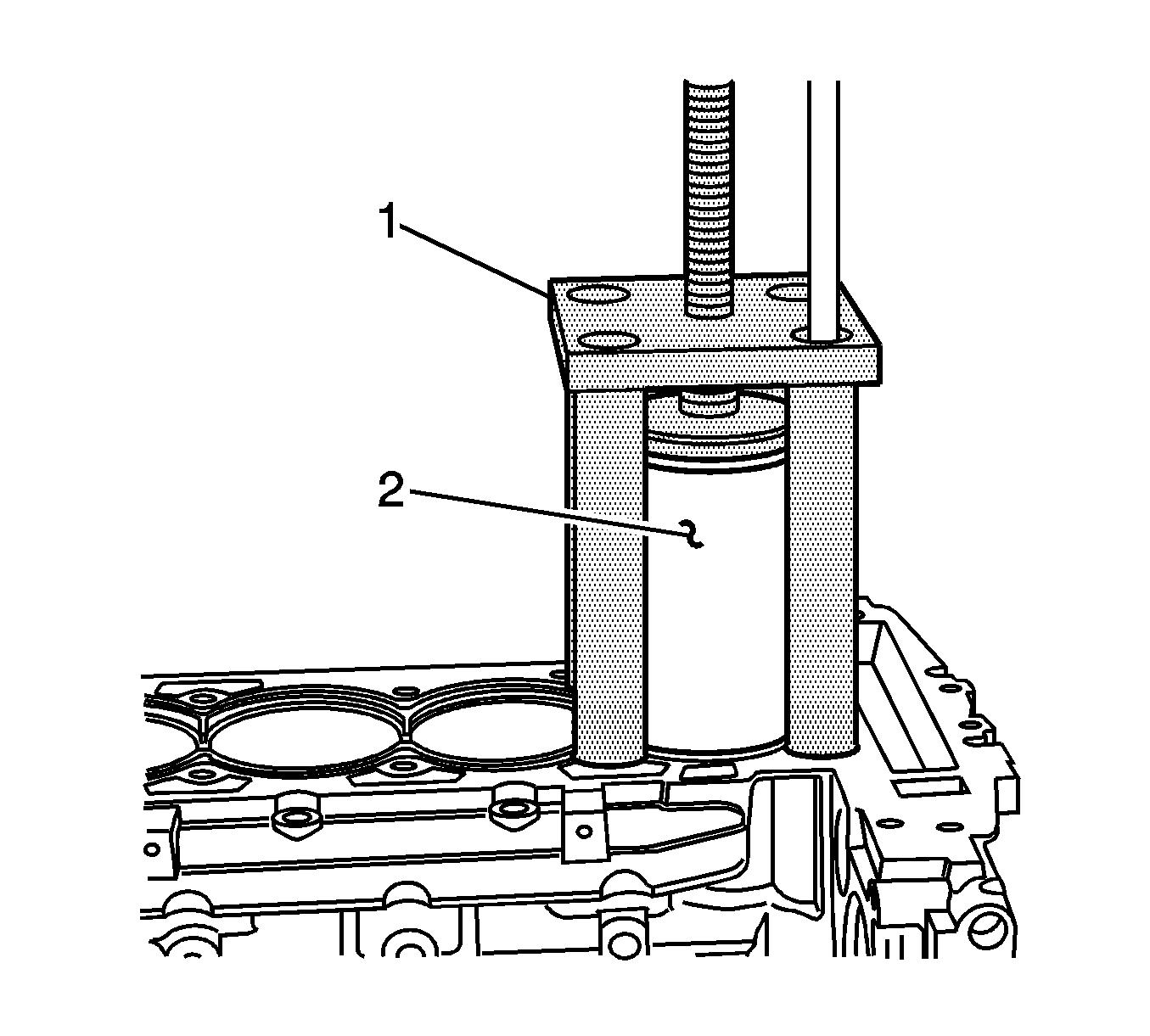

    3. Fig 2: View Of Cylinder Bore Sleeve Installer
    GM1355764Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
    IMPORTANT: Use 4 old cylinder head bolts for the attaching bolts.
  3. Insert the 4 attachment bolts into the legs of the EN 45680-851 fixture (1). Do not apply downward pressure to the cylinder bore sleeve (2).

    Tighten:  Tighten the 4 attachment bolts to 15 N.m (11 lb ft).

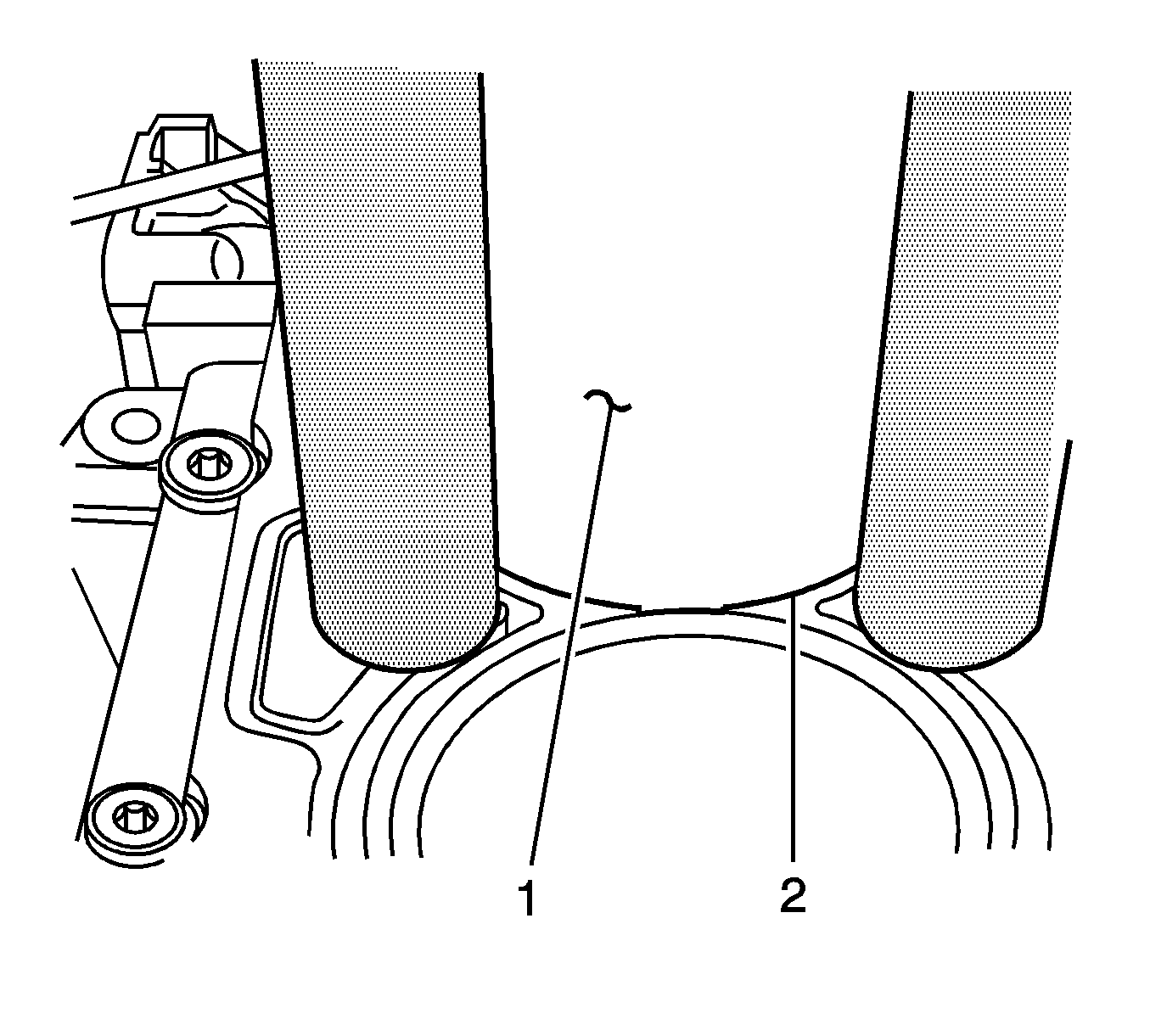

    4. Fig 3: Aligning Cylinder Bore Sleeve
    GM1355961Courtesy of GENERAL MOTORS CORP.
  4. Align the bottom of the cylinder bore sleeve (1) with the cylinder bore of the block (2).
    5. Fig 4: Aligning Installation Arbor
    GM1355962Courtesy of GENERAL MOTORS CORP.
  5. Align the installation arbor (1) onto the top of the cylinder bore sleeve (2).
    6. Fig 5: View Of Pusher Block
    GM1253956Courtesy of GENERAL MOTORS CORP.
  6. Align the pusher block (2) of EN 45680-853 cylinder bore sleeve installer into the groove of EN 45680-851 fixture (1).

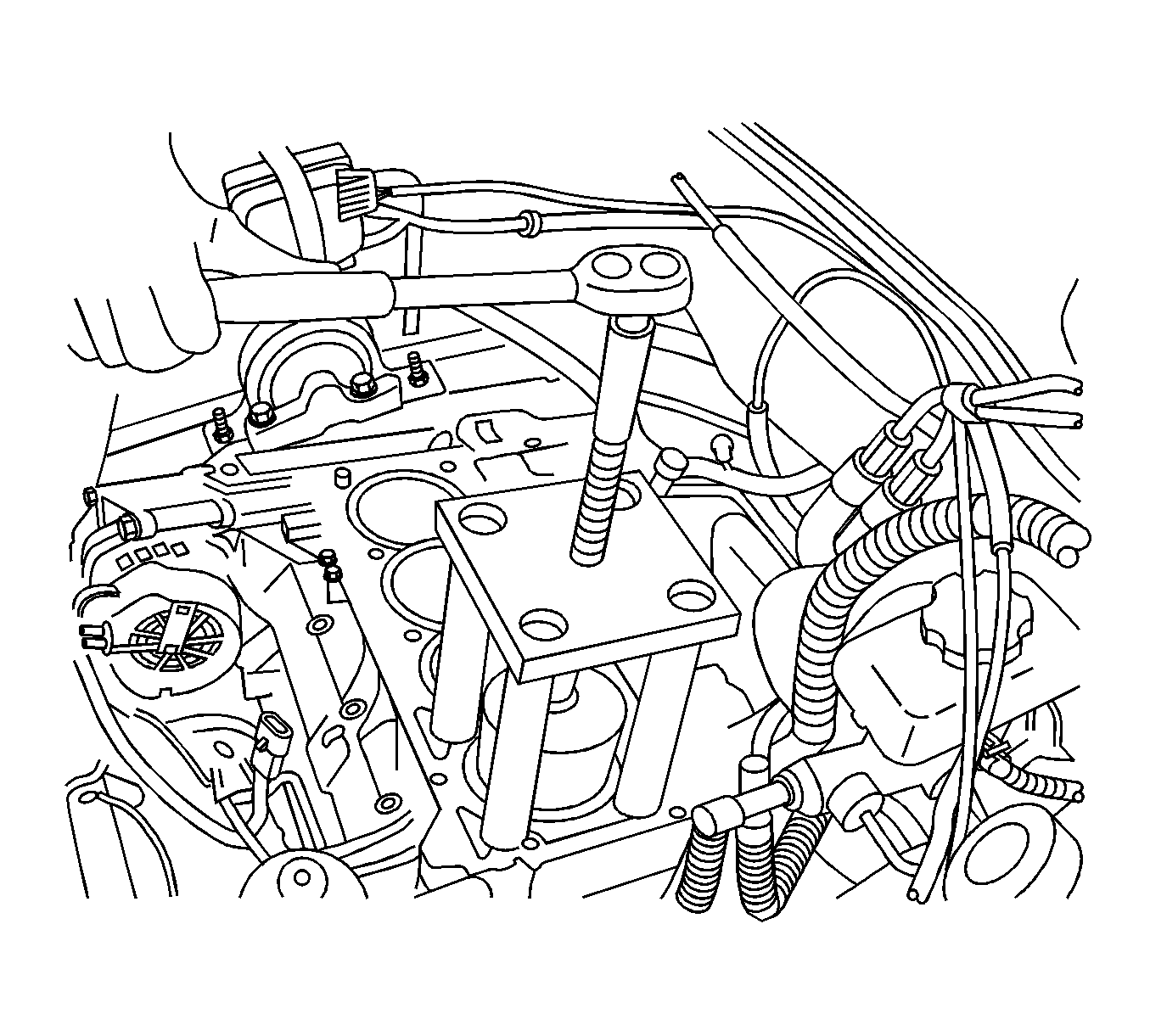

    7. Fig 6: View Of Cylinder Bore Sleeve Installer Assembly
    GM1333492Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not use any air powered or electric tools to rotate the threaded shaft of the fixture EN 45680-851/cylinder bore liner installer EN 45680-853 assembly or damage to the cylinder bore liner will occur.
  7. Using a ratchet, rotate the threaded shaft of EN 45680-85 fixture and EN 45680-853 cylinder bore sleeve installer assembly in order to install the cylinder bore sleeve into the engine block.
  8. Do not completely seat the cylinder bore sleeve in the block. Leave approximately 1/16 inch of the cylinder bore sleeve above the surface of the cylinder block.

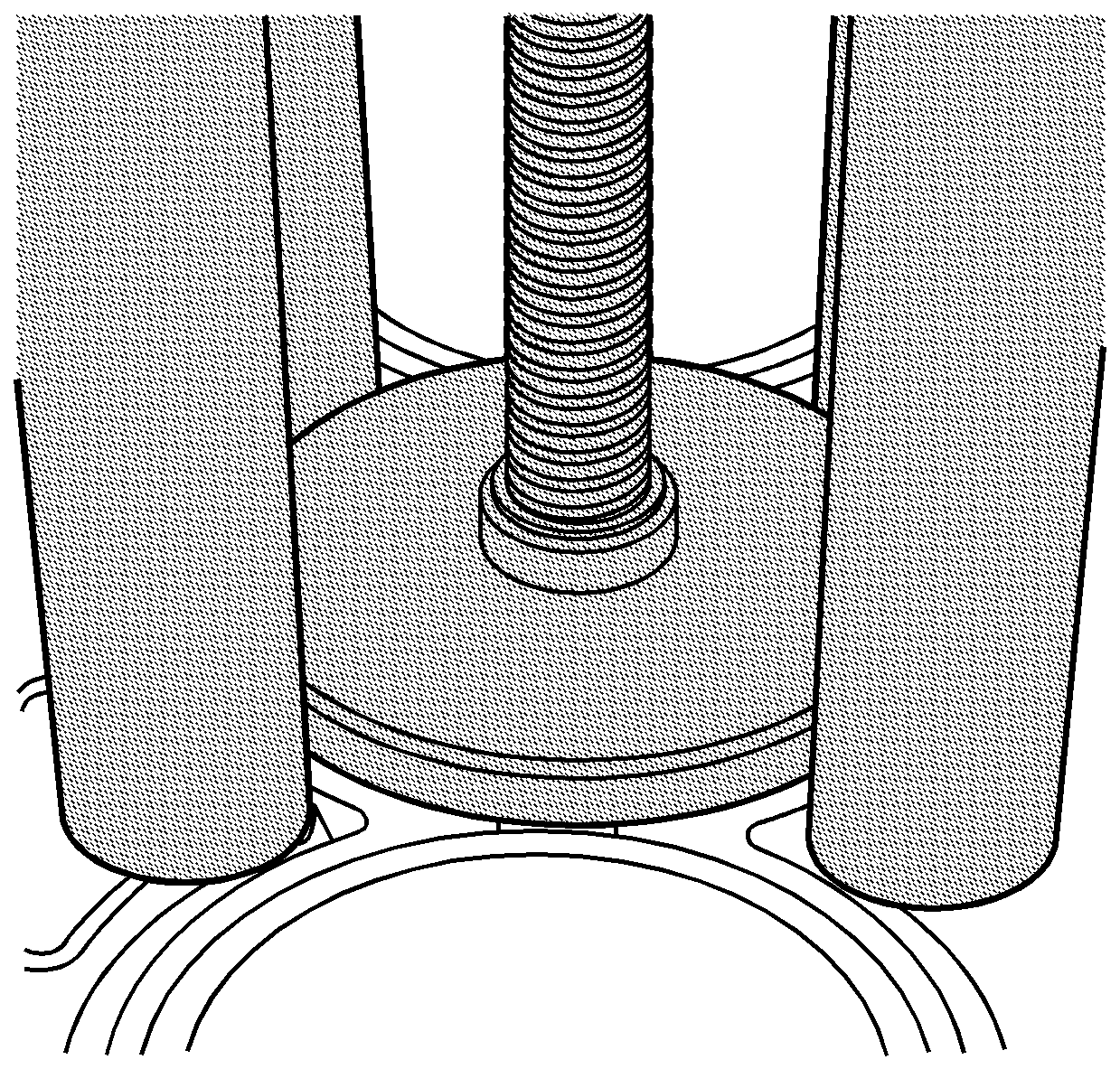

    9. Fig 7: Seating Cylinder Bore Sleeve Completely Using Tool
    GM1253960Courtesy of GENERAL MOTORS CORP.
  9. Using a torque wrench, tighten the threaded shaft of the EN 45680-851 fixture and EN 45680-853 cylinder bore sleeve installer assembly to 102 N.m (75 lb ft) in order to completely seat the cylinder bore sleeve in the cylinder block. With the cylinder bore sleeve properly installed, a minimal portion of the cylinder bore liner flange will protrude above the block deck surface.

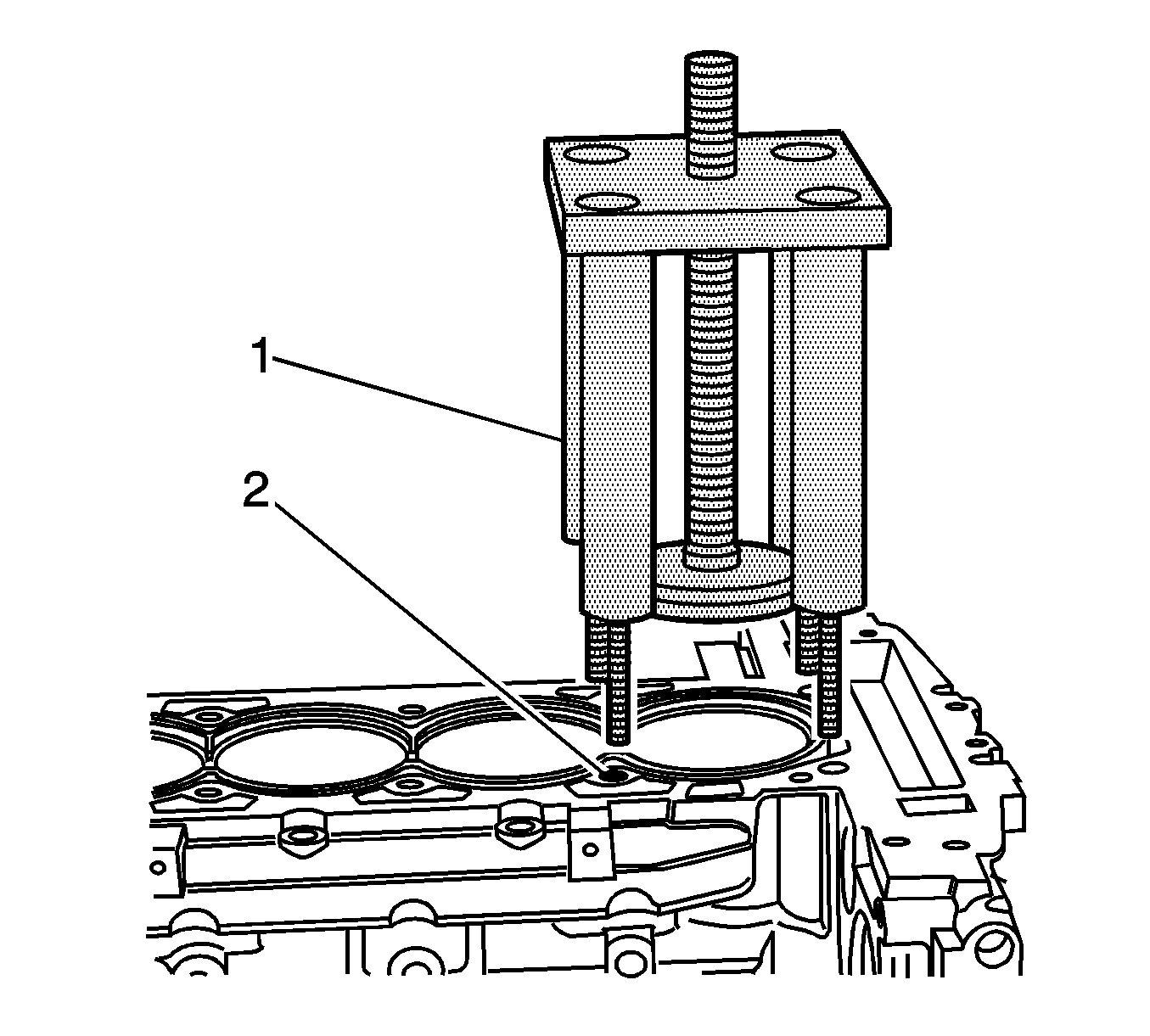

    10. Fig 8: Identifying Cylinder Bore Sleeve Installer Assembly
    GM1355963Courtesy of GENERAL MOTORS CORP.
  10. Remove the EN 45680-851 fixture and EN 45680-853 cylinder bore sleeve installer assembly (1) from the cylinder block (2).
