Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

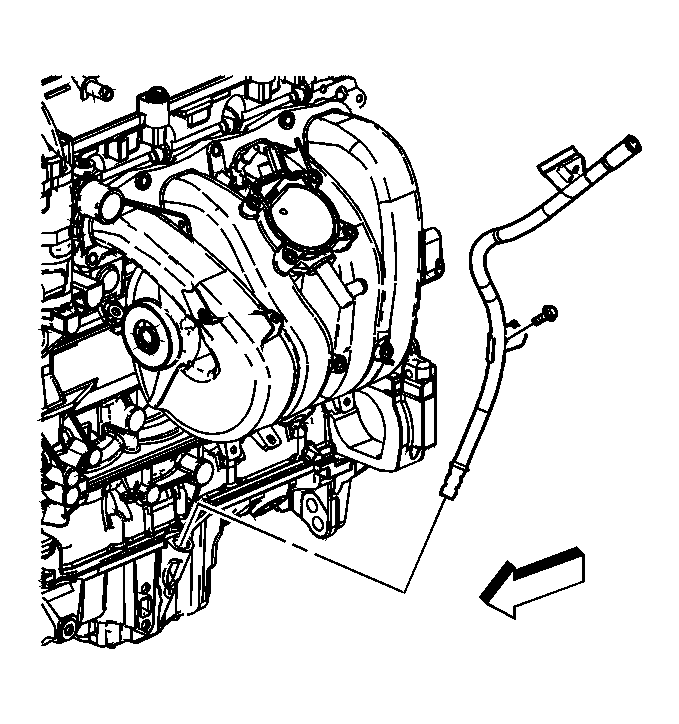

    Fig 1: Identifying Oil Level Indicator Tube
    GM1403967Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the oil level indicator tube O-ring with GM P/N 12345501 (Canadian P/N 992704) or equivalent.
  2. Install the oil level indicator and the oil level indicator tube into the oil pan.
    3. NOTE: Refer to Fastener Notice .
  3. Install the oil level indicator tube bracket to the intake manifold bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  4. Install the electrical wiring harness to the oil level indicator tube.
  5. Install the knock sensor wiring clip into the oil level indicator tube.
