Engine Oil Cooler Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

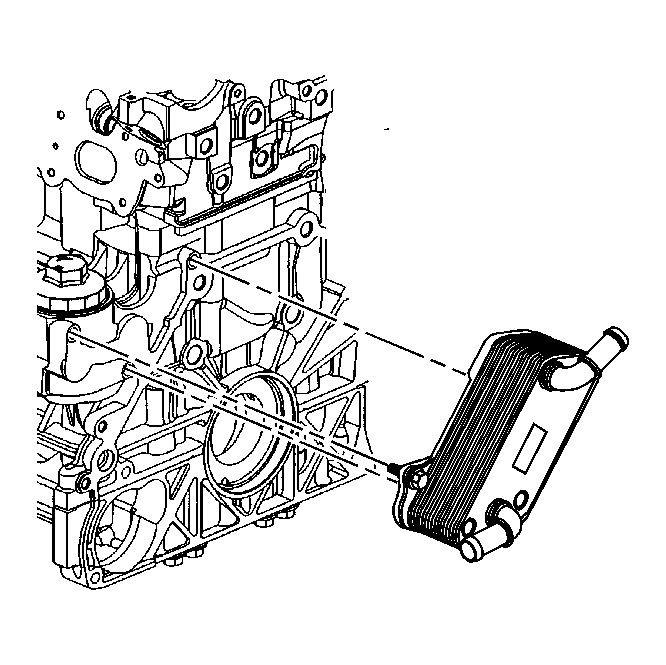

    Fig 1: Identifying Oil Cooler
    GM1594332Courtesy of GENERAL MOTORS CORP.
  1. Install the oil cooler.
    2. NOTE: Refer to Fastener Notice .
  2. Install the oil cooler bolt and studs.

    Tighten:  Tighten the bolts and studs to 22 N.m (16 lb ft).
