Camshaft Cover Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Camshaft Cover
    GM412147Courtesy of GENERAL MOTORS CORP.
  1. Assemble the camshaft cover and gasket. Ensure that the gasket is located in the retaining groove in the camshaft cover.
    2. NOTE: Refer to Fastener Notice .
  2. Install the cover on the cylinder head and hand start the bolts.

    Tighten:  Tighten the camshaft cover bolts to 10 N.m (89 lb in).

    3. Fig 2: View Of Front Lift Bracket
    GM865364Courtesy of GENERAL MOTORS CORP.
  3. Install the front lift bracket.
  4. Install the front lift bracket bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

    5. Fig 3: View Of Rear Lift Bracket
    GM865367Courtesy of GENERAL MOTORS CORP.
  5. Install the rear lift bracket.
  6. Install the rear lift bracket bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

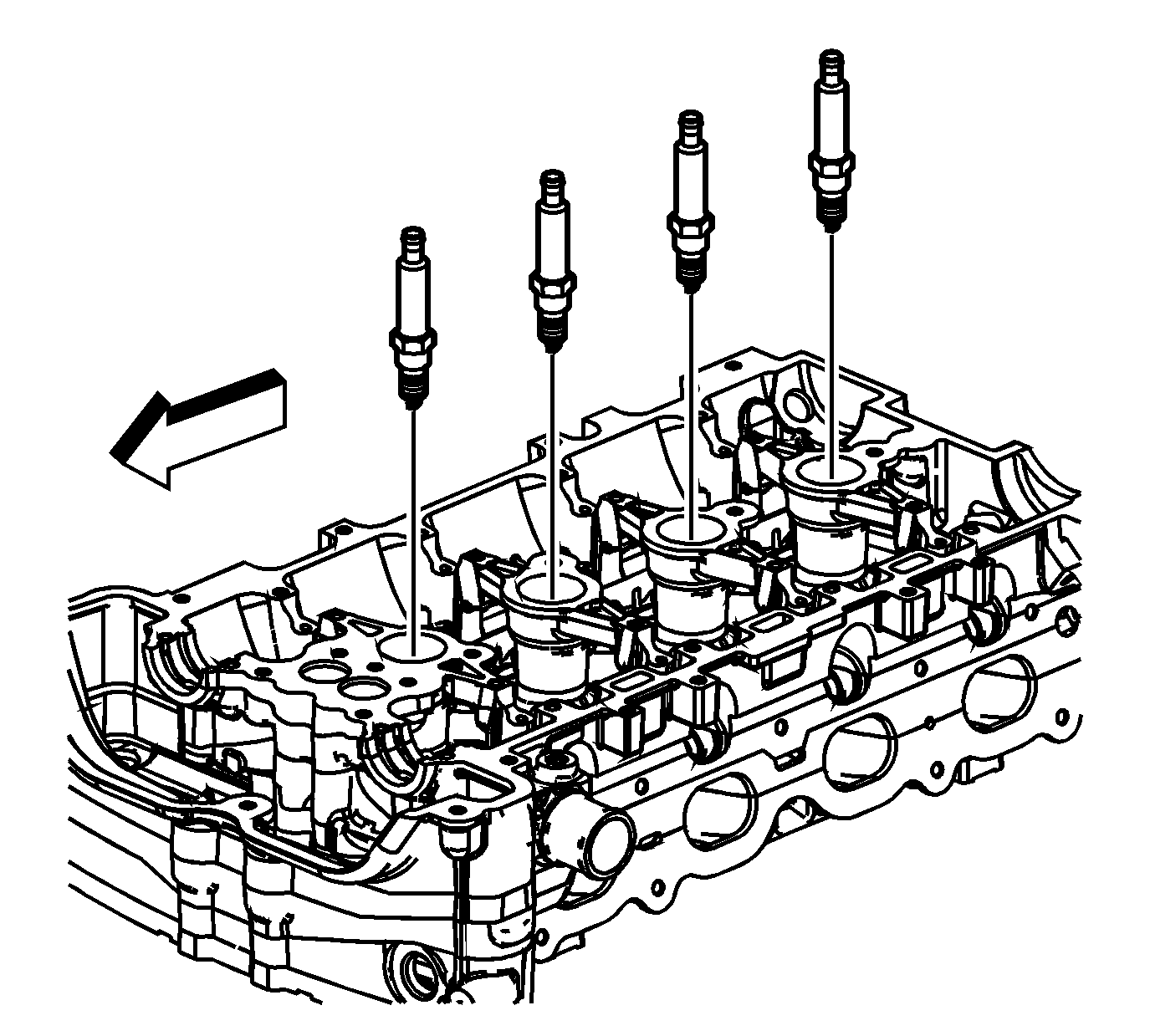

    7. Fig 4: Identifying Spark Plugs
    GM1403898Courtesy of GENERAL MOTORS CORP.
  7. Install the spark plugs.

    Tighten:  Tighten the spark plugs to 20 N.m (15 lb ft).

    8. Fig 5: View Of Coil And Camshaft Position Actuator Solenoid Valves
    GM1403959Courtesy of GENERAL MOTORS CORP.
  8. Install the ignition coil.

    Tighten:  Tighten the ignition coil bolts to 10 N.m (89 lb in).

  9. Install the camshaft position actuator solenoid valves.
  10. Install the camshaft position actuator solenoid valve bolts.
