Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the transmission mount bracket to the transmission.

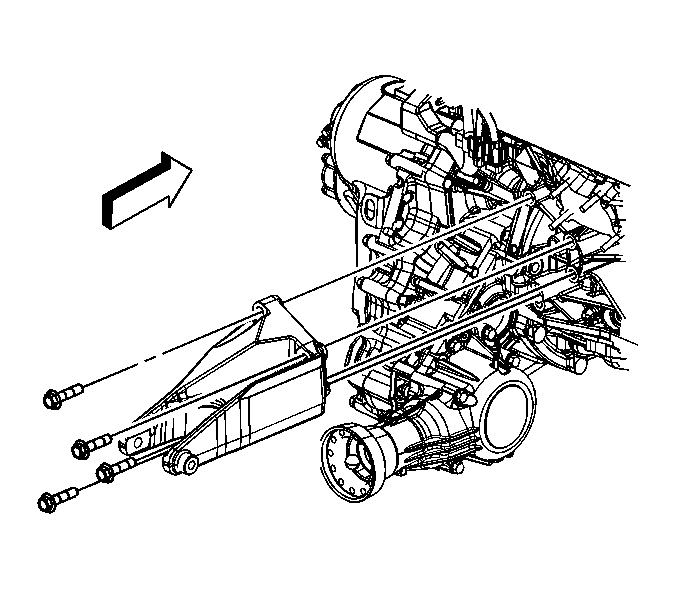

    2. Fig 1: Rear Transmission Mount Bracket To Transmission Bolts
    GM1239259Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the transmission mount bracket to transmission bolts.

    Tighten:  Tighten the bolts to 110 N.m (81 lb ft).

  3. Install the HO2S sensor. Refer to Heated Oxygen Sensor Replacement - Bank 1 Sensor 2 .
    4. Fig 2: View Of Steering Gear & Steering Gear-To-Frame Bolts
    GM927957Courtesy of GENERAL MOTORS CORP.
  4. Lower the steering gear to the frame.
  5. Install the steering gear to frame bolts.

    Tighten:  Tighten the bolts to 110 N.m (81 lb ft).

    6. Fig 3: Removing/Installing Steering Shaft To Intermediate Shaft
    GM927947Courtesy of GENERAL MOTORS CORP.
  6. Install the intermediate steering shaft to the steering gear.
  7. Install the intermediate steering shaft to gear pinch bolt.

    Tighten:  Tighten the bolts to 34 N.m (25 lb ft).

    8. Fig 4: View Of Rear Transmission Mount-To-Frame Bolts
    GM1260852Courtesy of GENERAL MOTORS CORP.
  8. Install the rear transmission mount. Refer to Transmission Rear Mount Replacement .
