Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

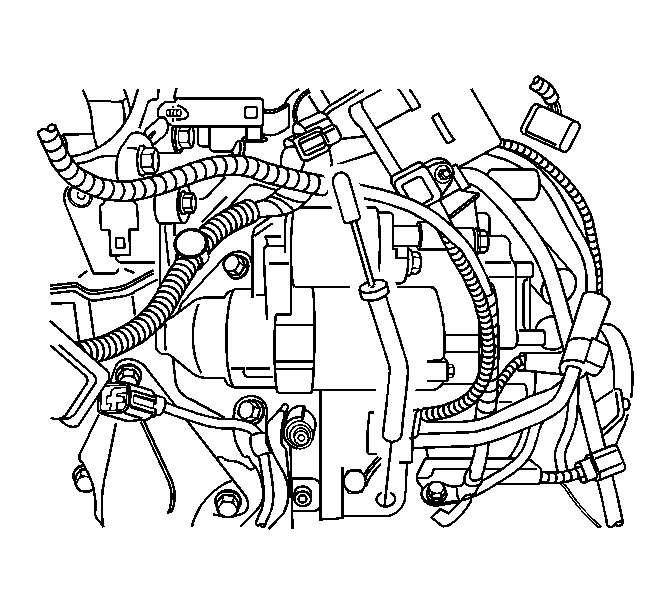

    Fig 1: Oil Indicator Tube & Bolt
    GM1227133Courtesy of GENERAL MOTORS CORP.
  1. Install the oil indicator and tube into the transmission case assembly.
    2. NOTE: Refer to Fastener Notice .
  2. Install the oil indicator tube bolt.

    Tighten:  Tighten the bolt to 12 N.m (106 lb in).
