Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

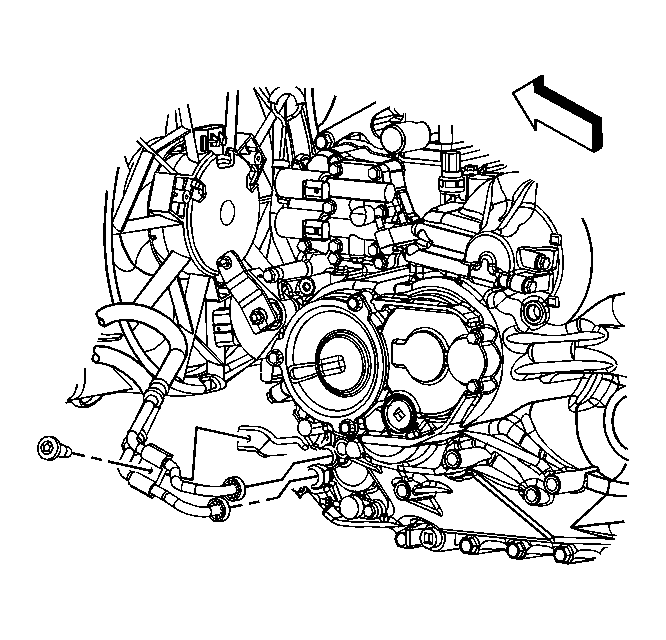

    Fig 1: TOC Line Bracket Bolt From Transmission Bracket
    GM1252577Courtesy of GENERAL MOTORS CORP.
  1. Install the "E" clip retainers to the quick connect fittings.
  2. Install the dust covers to the quick connect fittings.
  3. Install the TOC lines to the transmission. Gently tug on the TOC lines to ensure proper engagement of the quick connect fitting.
    4. NOTE: Refer to Fastener Notice .
  4. Install the TOC line bracket bolt to the transmission.

    Tighten:  Tighten the bolt to 7 N.m (62 lb in).

    5. Fig 2: View Of Transmission Cooler Liners To The Radiator
    GM1340584Courtesy of GENERAL MOTORS CORP.
  5. Install the lower TOC line to the radiator.

    Tighten:  Tighten fitting to 16 N.m (12 lb ft).

  6. Connect the upper TOC line to the clip on the fan shroud.
  7. Lower the vehicle.
  8. Install the upper TOC line to the radiator.

    Tighten:  Tighten fitting to 16 N.m (12 lb ft).

  9. Add fluid to the transmission as necessary. Refer to Transmission Fluid Replacement .
  10. Start the engine and inspect for leaks.
