Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

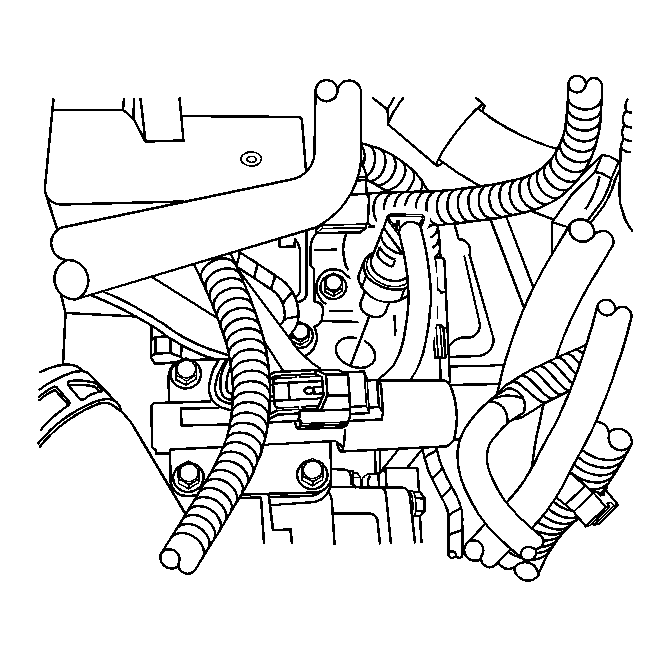

    Fig 1: 4th Clutch Pressure Switch
    GM1229952Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the 4th clutch pressure switch and washer.

    Tighten:  Tighten the input speed sensor bolt to 20 N.m (14 lb ft).

  2. Connect the wiring harness to the 4th clutch pressure switch.
  3. Install the battery tray. Refer to Battery Tray Replacement (2.2L (L61)) or Battery Tray Replacement (2.4L (LAT)) or Battery Tray Replacement (3.5L (L66)) .
