Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

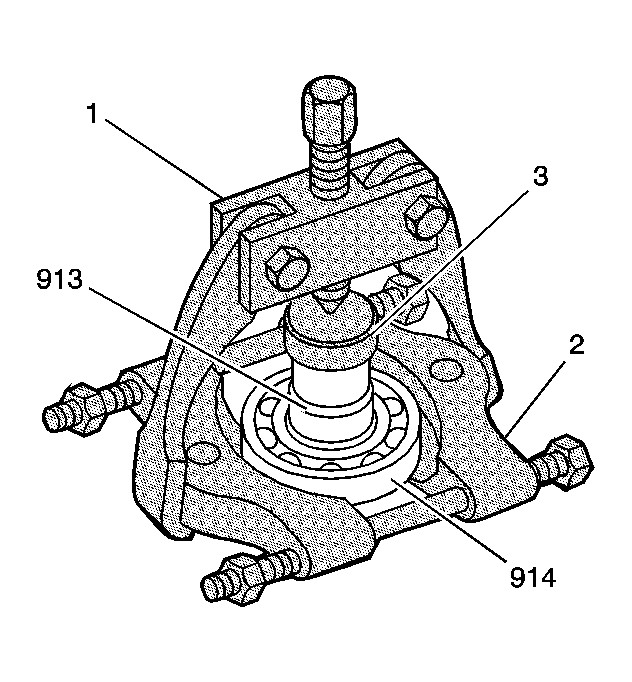

    Fig 1: Removing The Transfer Case Input Gear With Shaft Front Bearing From Transfer Case Input Gear Assembly Using DT 46424 & J 22912-01
    GM1205925Courtesy of GENERAL MOTORS CORP.
  1. Inspect the bearing for wear and rough rotation. If the bearing is OK, removal is not necessary.
  2. Place a shaft protector (3) between transfer output shaft (913) and SA9211T-2  (1) in order to prevent damaging the shaft. See Special Tools .
  3. Using DT 46424  (1), J 22912-B  (2), and the shaft protector (3), remove the transfer case input gear with shaft front bearing (914) from the transfer case input gear assembly (913). See Special Tools .
