Transfer Case Input Gear Assembly Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

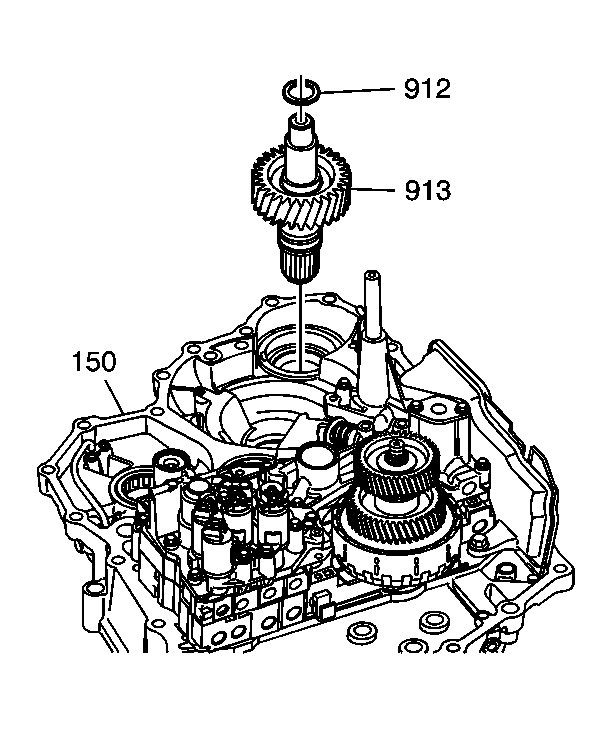

    Fig 1: Transfer Case Input Gear & Selective Shim
    GM1347194Courtesy of GENERAL MOTORS CORP.
  1. Install the transfer case input gear (913) into the torque converter housing (150).
  2. Install the correct predetermined transfer case input gear selective 28.5 mm thrust shim (912) on the machined surface of the transfer case input gear (913).
