Parking Pawl Assembly Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

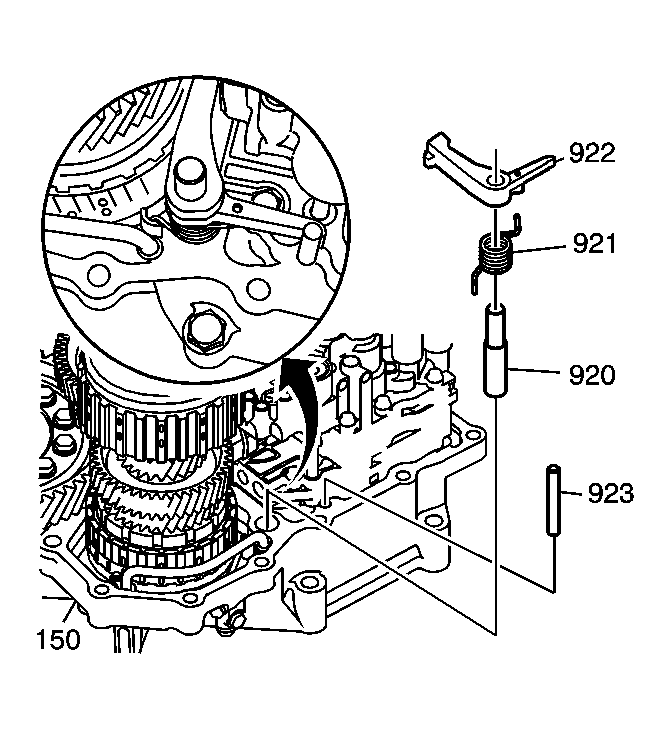

    Fig 1: Park Pawl, Spring, Shaft & Torque Converter Housing
    GM1203366Courtesy of GENERAL MOTORS CORP.
  1. Install the park pawl shaft (920), park pawl spring (921), park pawl (922), and the 8 mm x 73 mm park pawl stop lever pin (923) into the correct hole locations in the transmission torque converter housing (150).
  2. With one end of the spring (921) in the park pawl (922) hook the other end on the case.
