Disassembly Procedure
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the following components from the rear of the mainshaft (603):
- 5th/reverse drive gear and clutch hub thrust bearing (619)
- 5th/reverse drive gear (620)
- 5th/reverse drive gear and clutch hub inner bearing (621)
- 5th/reverse drive gear and clutch hub thrust bearing (622)
- 5th/reverse drive gear and clutch hub bearing race (623)
- 4th/5th clutch assembly (643)
- 4th/5th/reverse clutch housing fluid passage O-ring seals (604)
- Remove the following from the front of the mainshaft (603):
- Mainshaft front bearing retaining ring (600)
- Mainshaft front bearing (601)
- Mainshaft fluid passage seal (602)

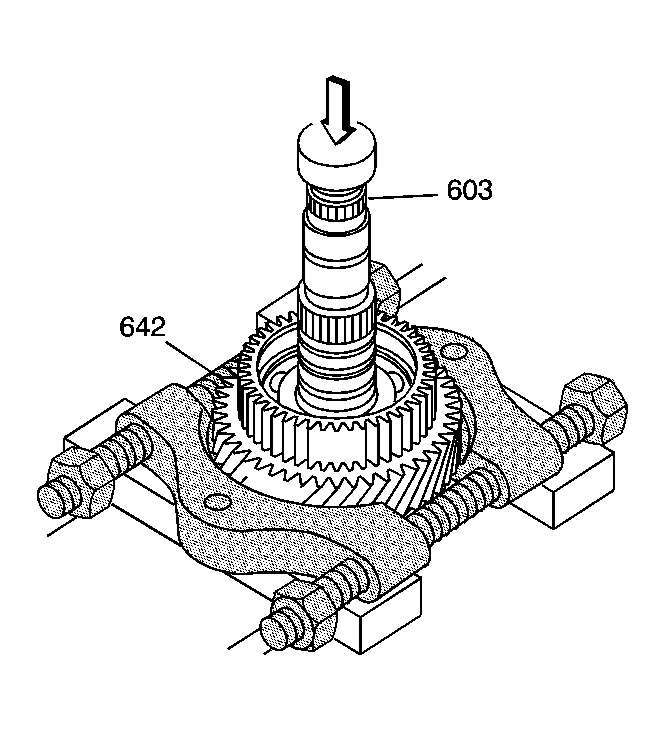

- Using a hydraulic press and J 22912-B
, remove the 4th drive gear with clutch hub assembly (642) from the mainshaft (603).
- Protect the end of the mainshaft to avoid damage to the threads.
- Ensure the J 22912-B is under the bearing race. Do not catch on or under the flange on the shaft.
- Remove the 4th drive gear and clutch hub bearing retaining ring (605).
- Using a brass drift and hammer, remove the 4th drive gear and clutch hub bearing (606) from the 4th drive gear (607).
IMPORTANT:
The 1st/2nd/3rd drive gear (641) does not remove from the mainshaft (603).
