Bearing Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

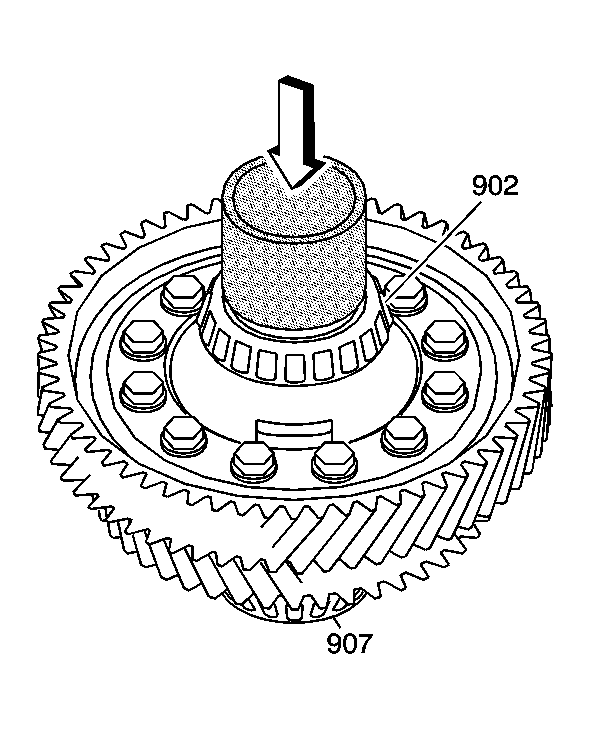

    Fig 1: Installing Front Differential Tapered Front/Rear Roller Bearing Using DT 46432
    GM1205915Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the bearings are pressed on completely. There should be no clearance between the bearing and the front differential assembly.
  1. Using the 45 mm end of DT 46432  and a hydraulic press, install the front differential tapered front roller bearing (902) on the front differential assembly. See Special Tools .
  2. Using the 45 mm end of DT 46432  and a hydraulic press, install the front differential tapered rear roller bearing (907) on the front differential assembly. See Special Tools .
