Drain Plug Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

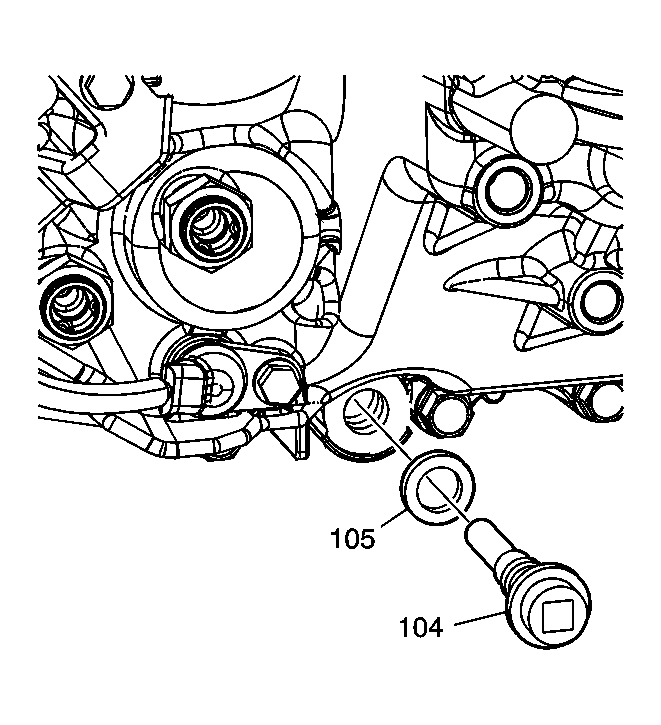

Fig 1: Fluid Drain Plug & Sealing Washer

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Using a new 18 mm transmission fluid drain plug sealing washer (105), install the 18 mm transmission fluid drain plug (104) into the transmission case.

Tighten: Tighten the drain plug to 49 N.m (36 lb ft)
