Automatic Transmission Fluid Temperature Sensor Removal

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

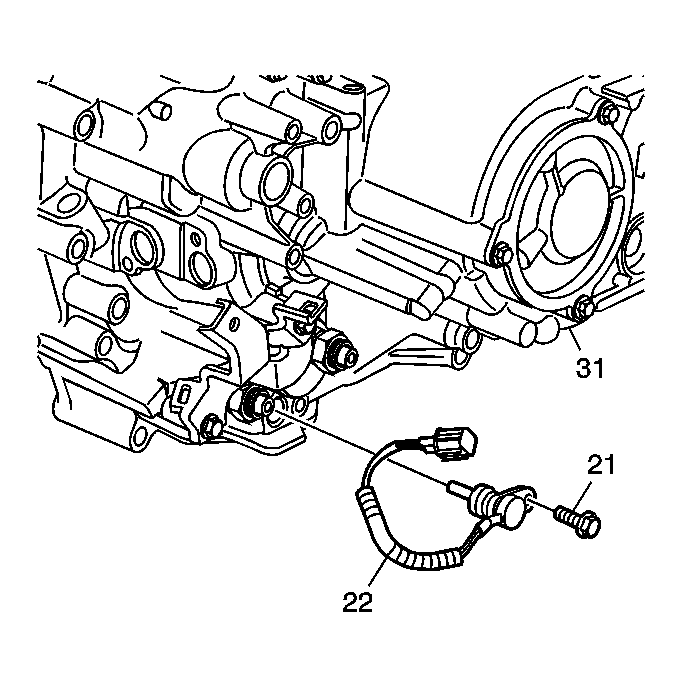

    Fig 1: Automatic Transmission Fluid Temperature Sensor, Bolt, O-Ring Seal & Transmission Case
    GM1343177Courtesy of GENERAL MOTORS CORP.
  1. Remove the automatic transmission fluid temperature sensor bolt (21).
  2. With a slight twisting motion, remove the automatic transmission fluid temperature sensor (22) with the O-ring seal from the transmission case (31).
