Accumulator Valve Body Removal

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Manual Shift Shaft Detent Roller, Pin & Bolts
    GM1203376Courtesy of GENERAL MOTORS CORP.
  1. Remove the 11 accumulator valve body bolts (476), (477), (478), (479), (482) and (483).
  2. Remove the manual shift shaft detent roller assembly (935).
  3. Remove the manual shift shaft detent roller pin (937).
  4. Remove the accumulator valve body (495).

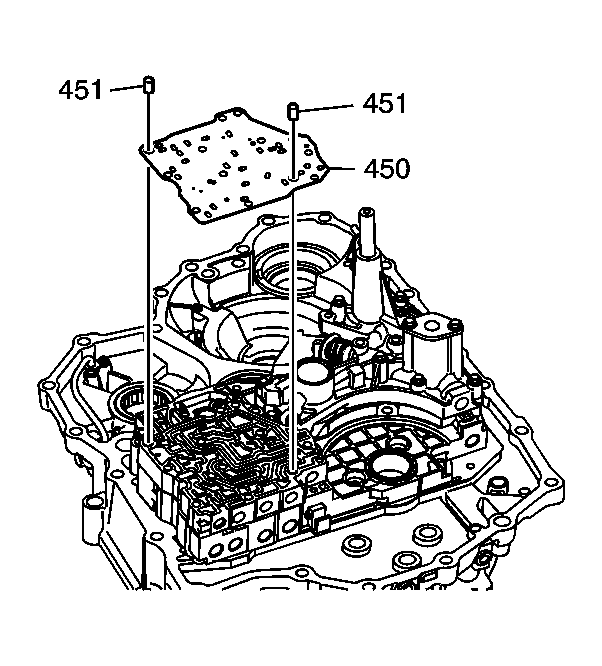

    5. Fig 2: Accumulator Valve Body Spacer Plate & Locating Pins
    GM1343185Courtesy of GENERAL MOTORS CORP.
  5. Remove the accumulator valve body spacer plate (450).
  6. Remove the 2 spacer plate locating pins (451).
