3rd Clutch Shaft Assembly Removal

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

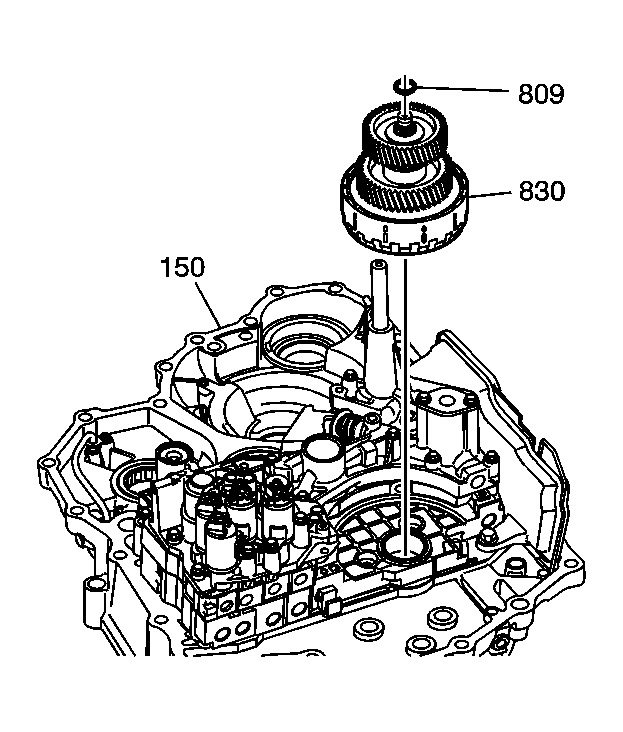

    Fig 1: Selective Washer, 3rd Clutch Assembly & Torque Converter Housing
    GM1343183Courtesy of GENERAL MOTORS CORP.
  1. Remove the selective washer (809).
  2. Remove the complete 3rd Clutch assembly (830) from the torque converter housing (150).
