3rd Clutch Shaft Assembly Installation

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

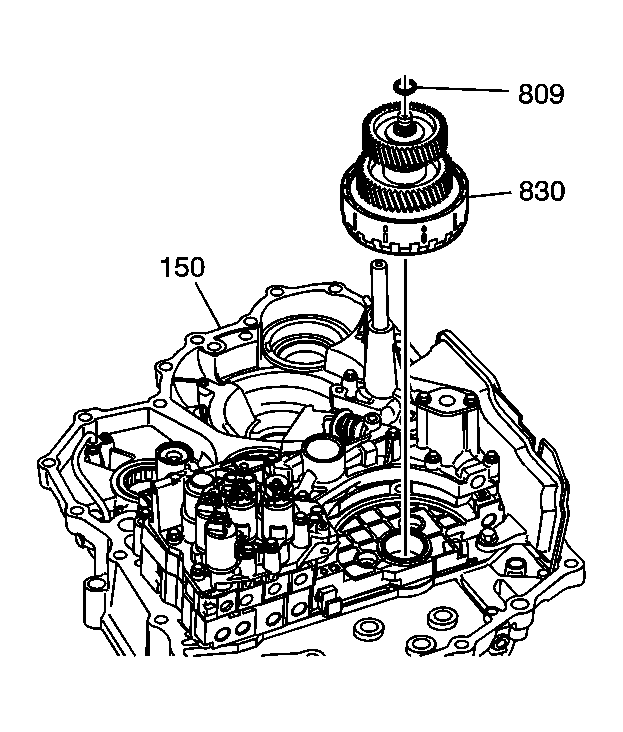

    Fig 1: Selective Washer & 3rd Clutch Shaft Assembly
    GM1347190Courtesy of GENERAL MOTORS CORP.
  1. Install the 3rd clutch shaft assembly (830) into the torque converter housing assembly (150).
  2. Install the correct predetermined 3rd clutch shaft, installed height, selective 26.5 mm washer (809) on the machined end of the 3rd clutch shaft assembly (830).
