1st/2nd Clutch Shaft Lube Feed Pipe Removal

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

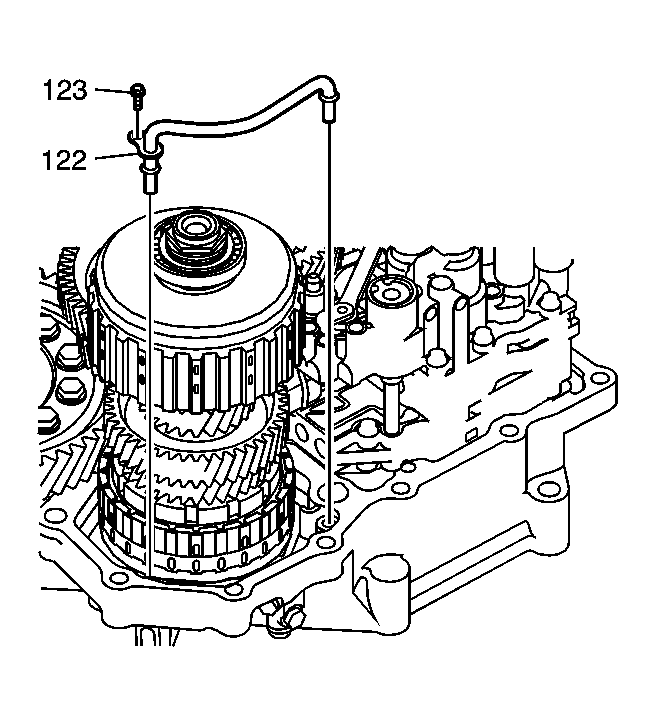

    Fig 1: Clutch Shaft Fluid Pipe Retainer Bolt & Clutch Shaft Lube Feed Pipe
    GM1203367Courtesy of GENERAL MOTORS CORP.
  1. Remove the 1st/2nd clutch shaft fluid pipe retainer bolt (123).
  2. Remove the 1st/2nd clutch shaft lube feed pipe (122).
