Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

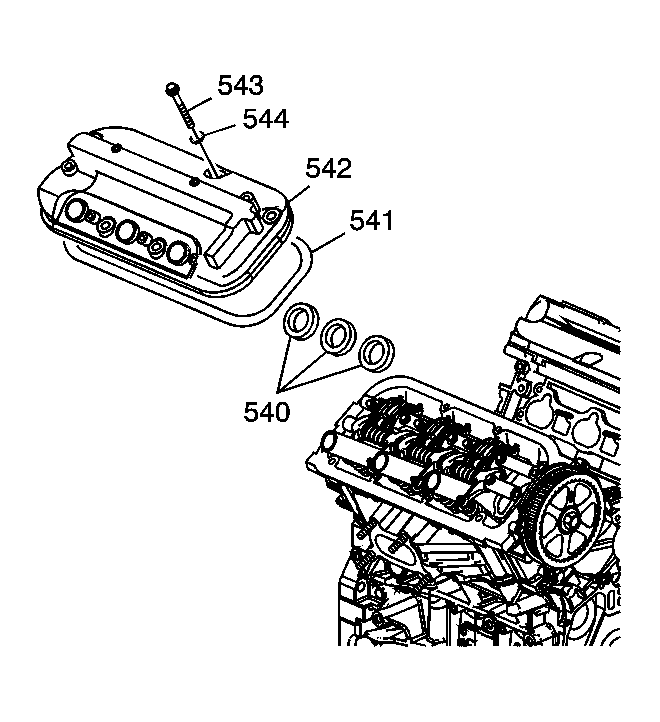

    Fig 1: Identifying Wiring Harness Bracket Bolt
    GM897116Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install NEW seals (540), NEW gasket (541), cover (542), NEW grommets (544) and bolts (543).
    2. Fig 2: View Of Valve Rocker Arm Cover Bolt Tightening Sequence
    GM1197327Courtesy of GENERAL MOTORS CORP.
  2. Tighten the bolts in sequence.

    Tighten:  Tighten the bolts to 12 N.m (106 lb in).

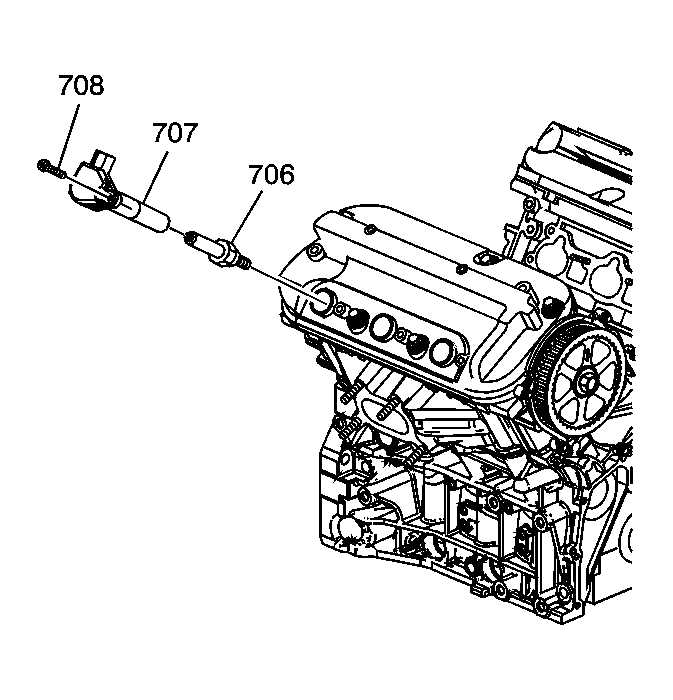

    3. Fig 3: Identifying Valve Rocker Arm Cover
    GM897115Courtesy of GENERAL MOTORS CORP.
  3. Install the ignition coils (707) and bolts (708).

    Tighten:  Tighten the bolts to 12 N.m (106 lb in).

  4. Install the wiring harness bracket bolt to the valve rocker arm cover.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  5. Connect the fuel injector connectors.
  6. Install the intake manifold. Refer to Intake Manifold Removal .
  7. Connect the EVAP purge hose.
  8. Connect the IAT sensor connector.
  9. Connect the MAP sensor connector.
  10. Connect the vacuum brake booster hose.
  11. Connect the ECT sensor connector.
