Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

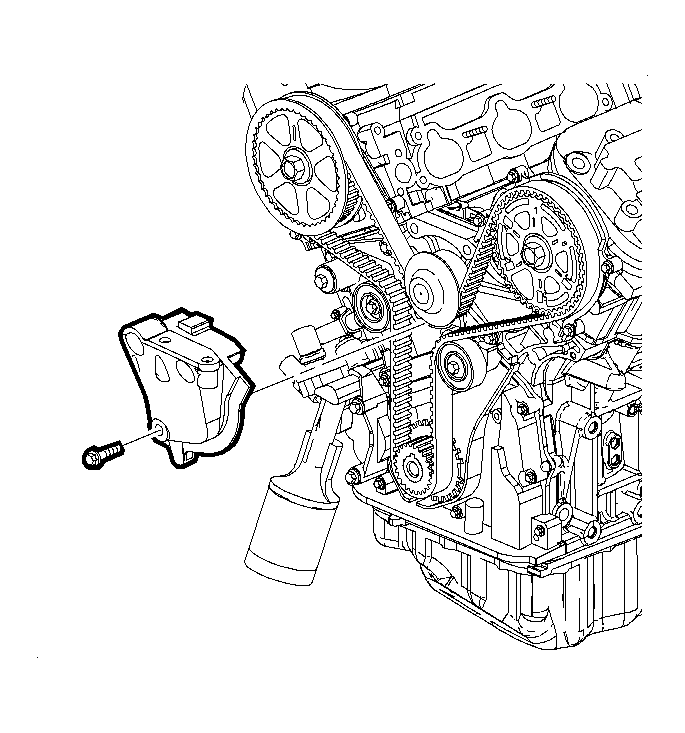

    Fig 1: View Of Engine Mount Bracket
    GM1424756Courtesy of GENERAL MOTORS CORP.
  1. Position the engine mount bracket to the engine.
    2. NOTE: Refer to Fastener Notice .
    IMPORTANT: Three bolts retain the mount bracket to the engine. Apply sealant to the lower bolt only.
  2. Apply sealant Saturn P/N 21485277 (GM P/N 12345382) or equivalent, to the engine mount bracket lower bolt only and install the engine mount bracket to engine bolts.

    Tighten:  Tighten the bolts to 44 N.m (33 lb ft).

  3. Install the right engine mount. Refer to Engine Mount Replacement - Right Side .
