Intake Camshaft, Follower, and Adjuster Removal

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

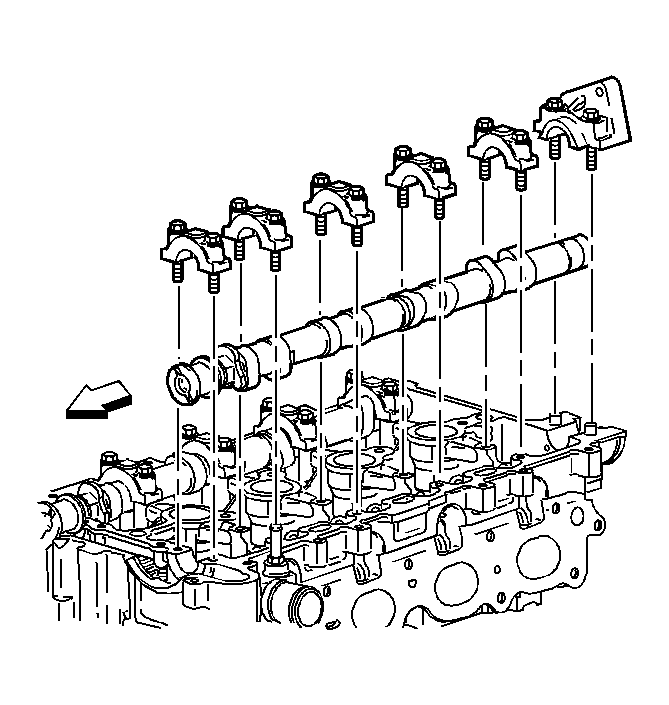

    Fig 1: View Of Intake Camshaft And Caps
    GM412170Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Remove each bolt on each cap one turn at a time until there is no spring tension pushing on the camshaft.
  1. Mark the caps to ensure they are installed in the same position.
  2. Remove the intake camshaft cap bolts.
  3. Remove the camshaft caps.
  4. Remove the intake camshaft.
    5. Fig 2: View Of Camshaft Roller Followers
    GM412183Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Keep all of the roller finger followers and hydraulic lash adjusters in order so that they can be reinstalled in their respective locations.
  5. Remove the intake camshaft roller finger followers.
    6. Fig 3: View Of Hydraulic Element Lash Adjusters
    GM412185Courtesy of GENERAL MOTORS CORP.
  6. Remove the hydraulic lash adjusters.
