Removal & Installation (Passenger-side)

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove glove box. Remove Connector Position Assurance (CPA) clip from passenger-side air bag module connector and disconnect connector. See Fig 1. Remove passenger-side air bag module bolts. Remove air bag module from instrument panel.
  3. To install, reverse removal procedure. Tighten passenger-side air bag module bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

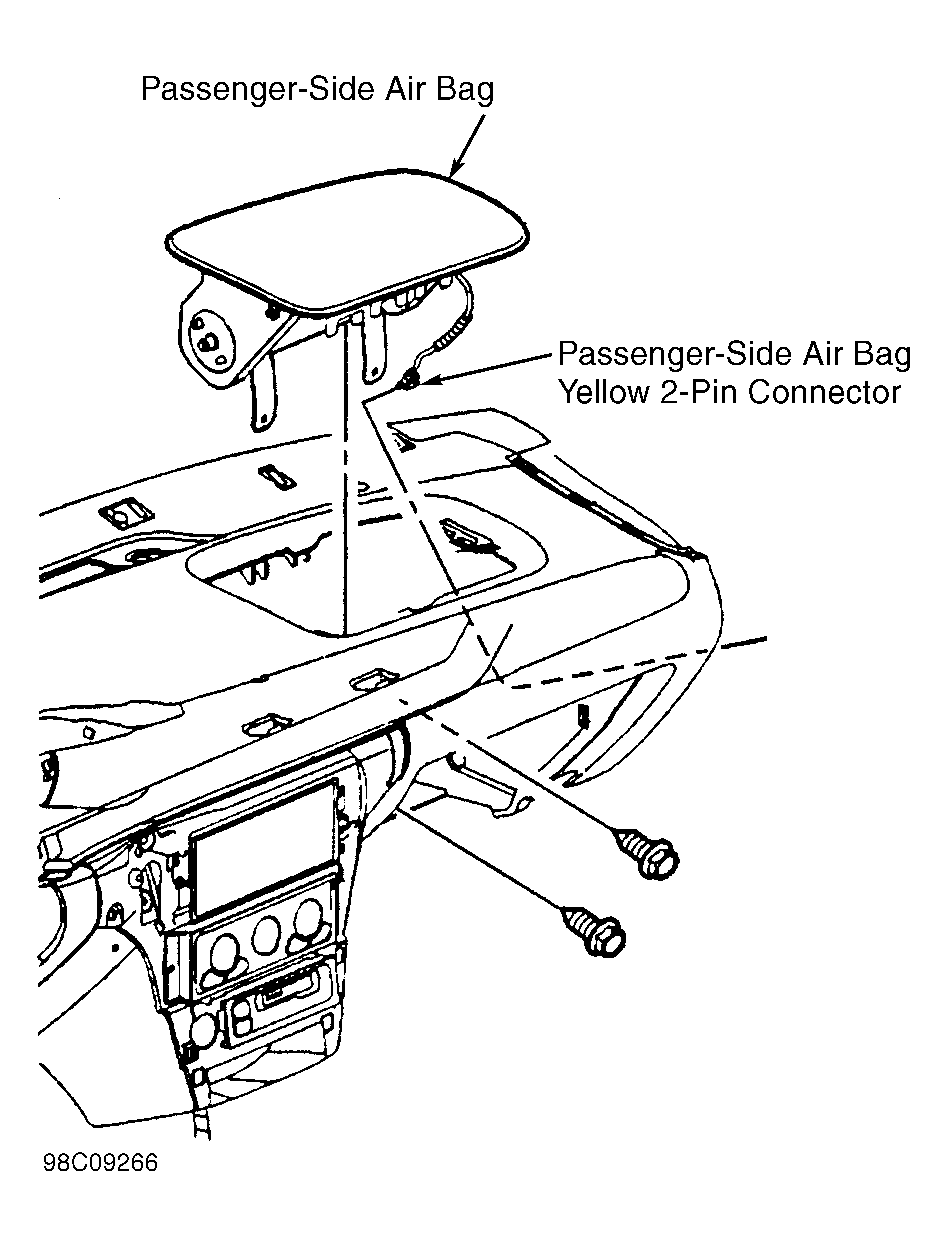

Fig 1: Identifying Passenger-side Air Bag Module
G98C09266Courtesy of GENERAL MOTORS CORP.
