Rear Bumper Fascia Extension Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

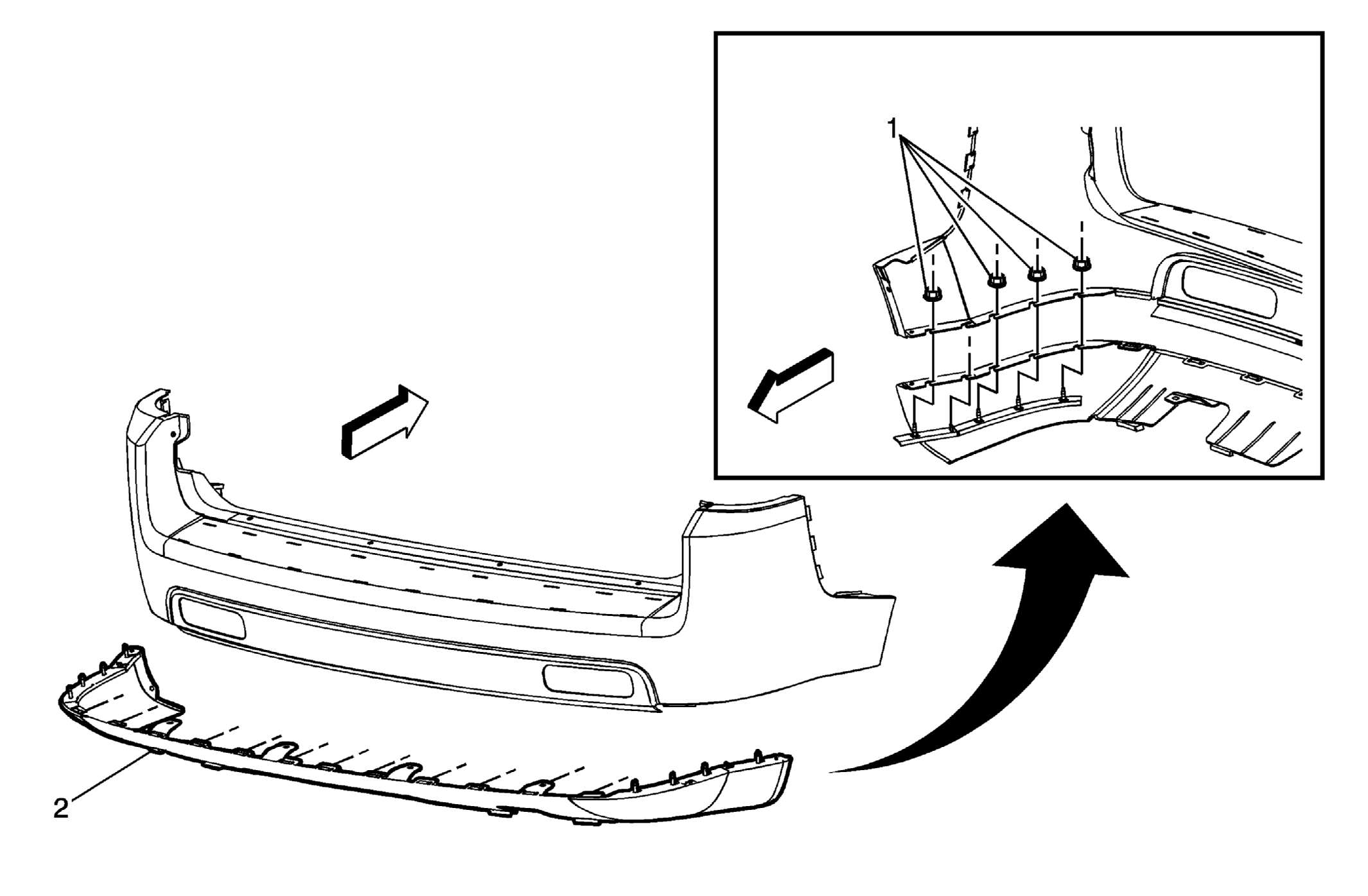

Fig 1: View Of Rear Bumper Fascia Extension

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Lower Fascia Bracket Nut (Qty: 8) NOTE: Refer to Fastener Notice . Tighten: 6 N.m (53 lb in)
2	Rear Fascia Extension
