Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

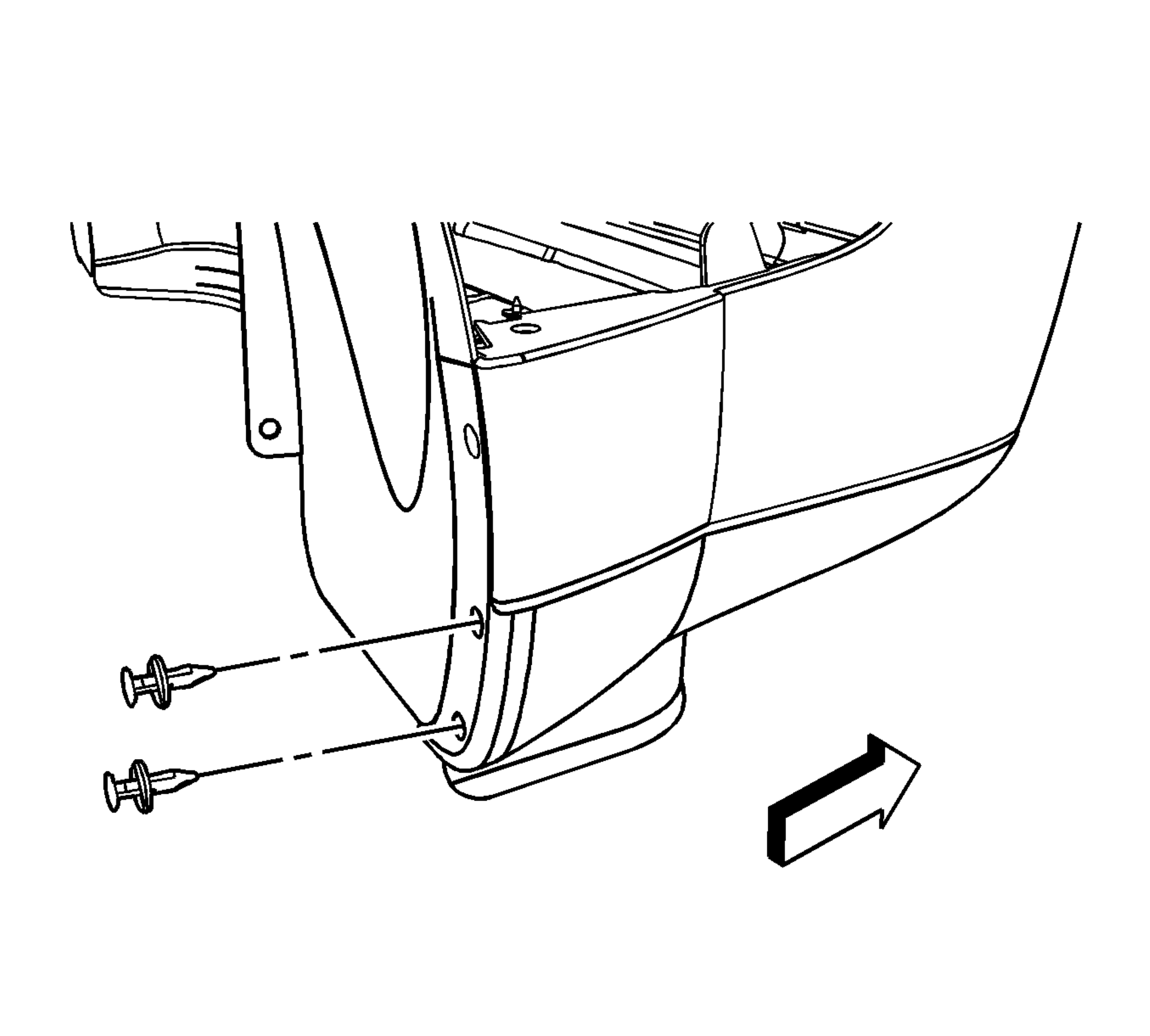

    Fig 1: View Of Push-Pin Retainers - Front Wheelhouse Liners
    GM1718782Courtesy of GENERAL MOTORS CORP.
  1. Remove the four push-pin retainers holding the front lower fascia to the front wheelhouse liners.

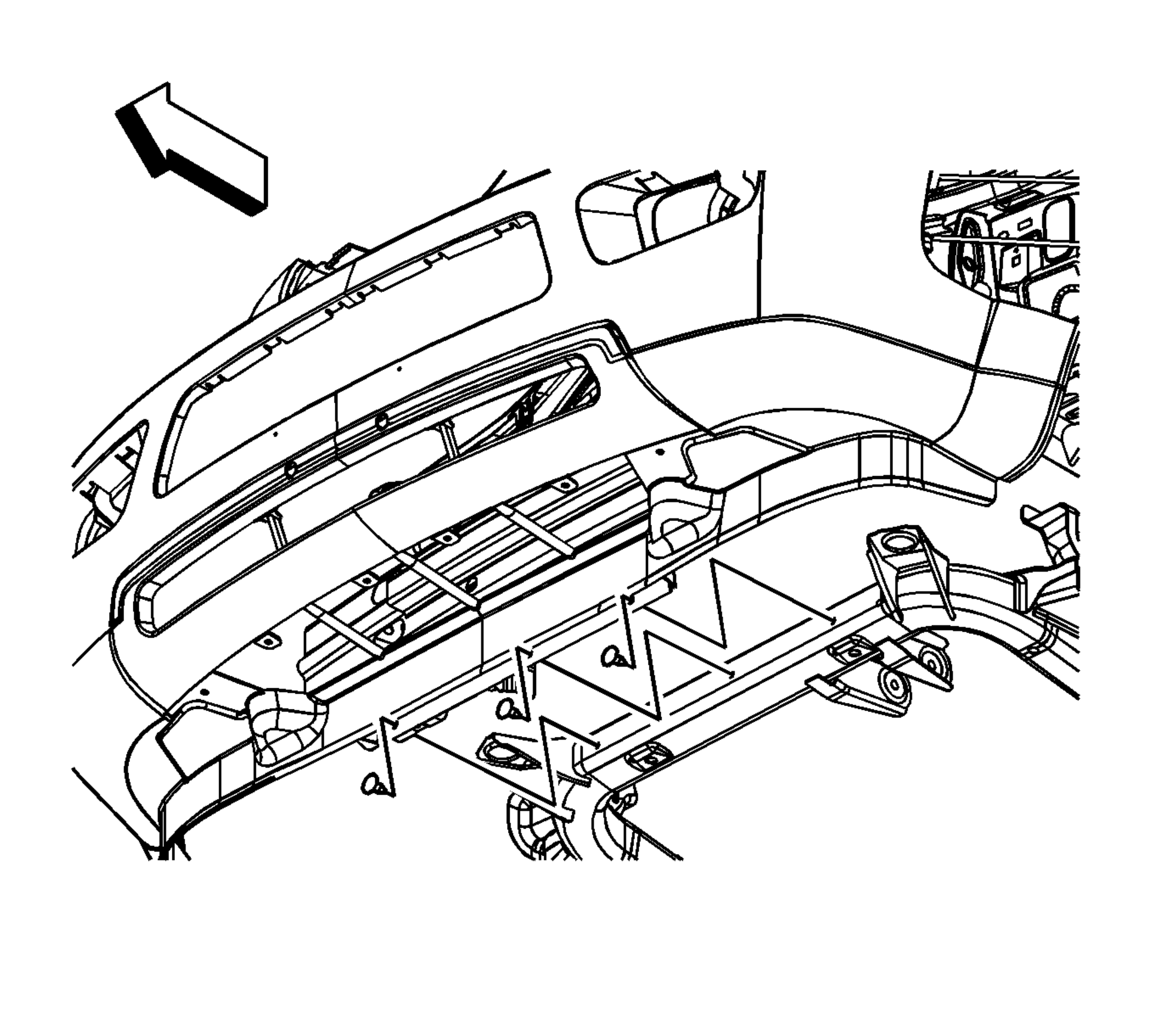

    2. Fig 2: View Of Push-Pin Retainers - Fascia To The Frame
    GM1718781Courtesy of GENERAL MOTORS CORP.
  2. Remove the three push-pin retainers holding the lower fascia to the frame.
    3. Fig 3: View Of Retaining Nuts Holding Lower To Upper Fascia
    GM1718780Courtesy of GENERAL MOTORS CORP.
  3. Remove the six retaining nuts holding the lower and upper fascias together.
    4. Fig 4: View Of Lower And Upper Fascia
    GM1718779Courtesy of GENERAL MOTORS CORP.
  4. Pull the lower fascia forward gently to disengage from upper fascia.
