Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

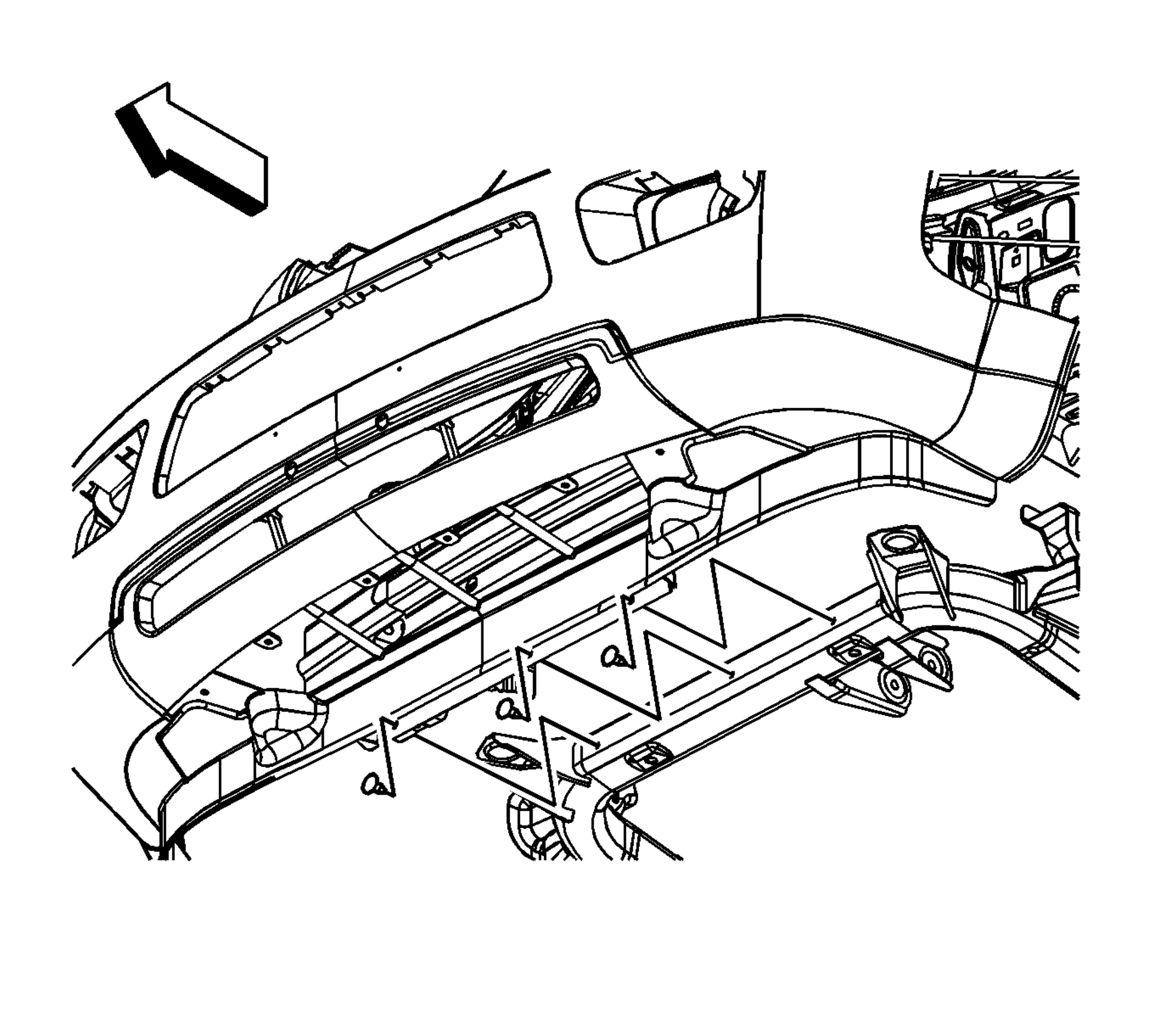

Fig 1: View Of Lower And Upper Fascia

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Push the lower fascia forward into the upper fascia engaging the plastic clips into the holders on the upper fascia.

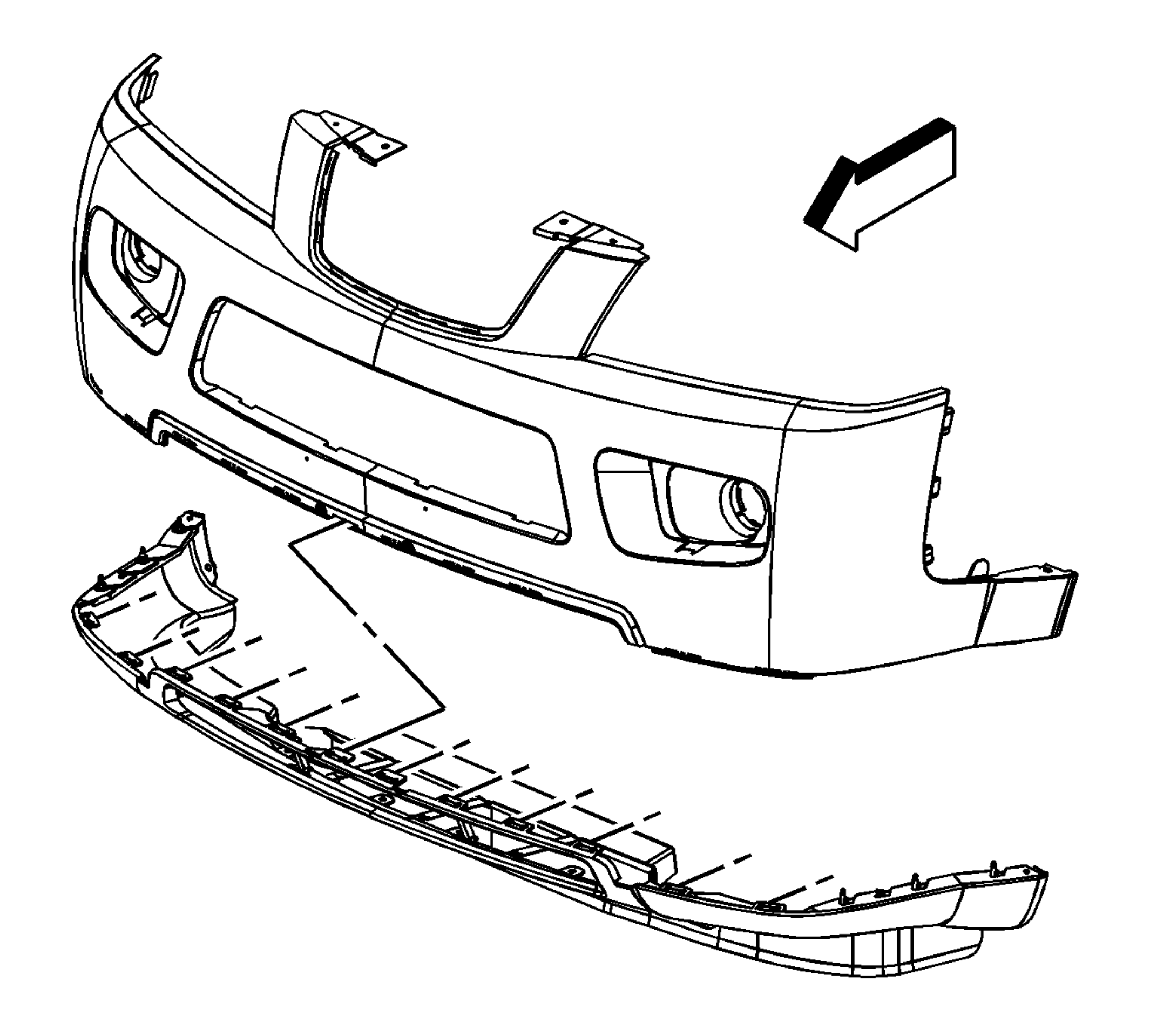

Fig 2: View Of Retaining Nuts Holding Lower To Upper Fascia

Courtesy of GENERAL MOTORS CORP.

Tighten the 6 nuts to re-secure the lower fascia to the upper fascia.
Tighten: Tighten the nuts to 6 N.m (53 lb in).

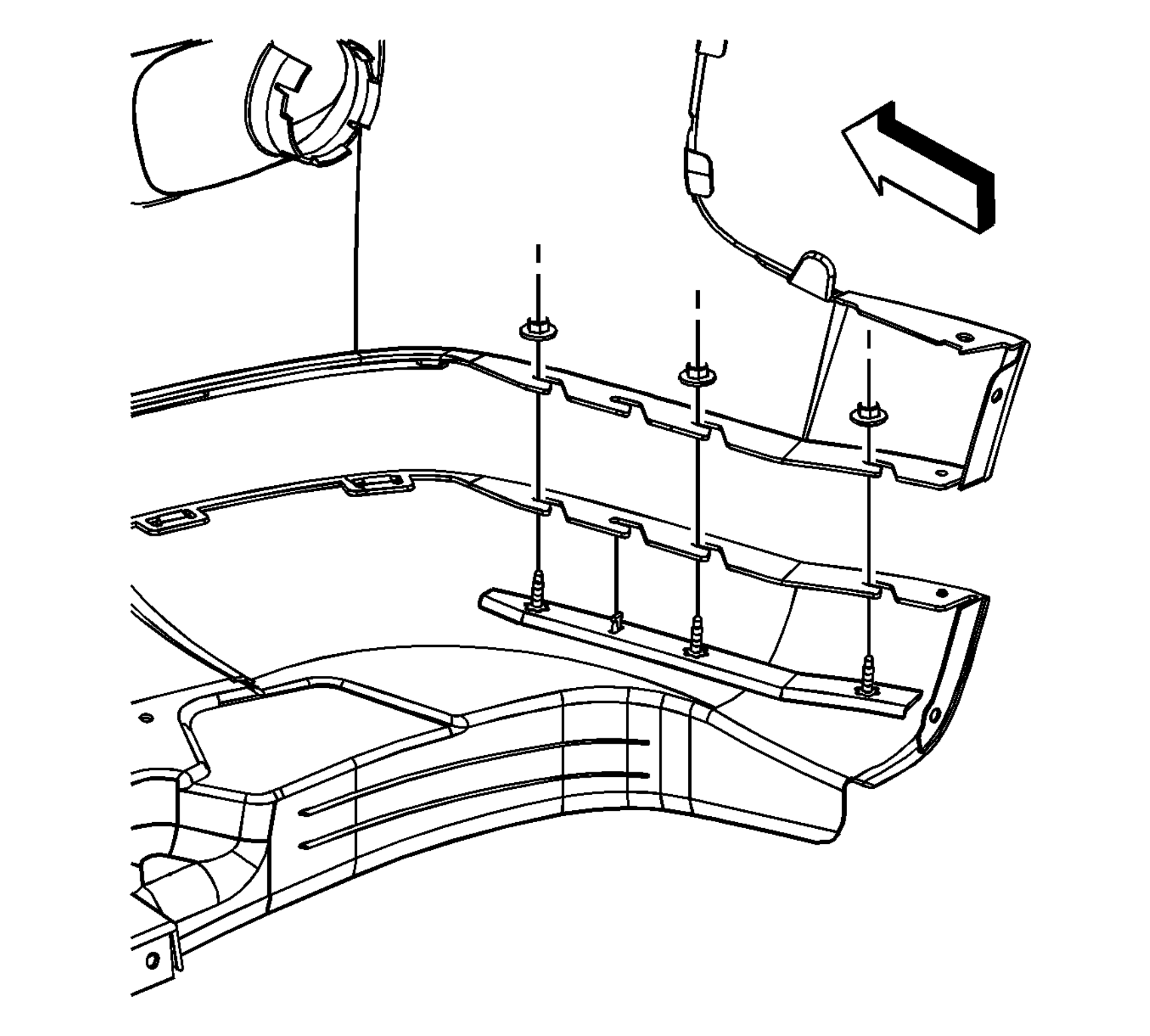

Fig 3: View Of Push-Pin Retainers Securing Lower Fascia To Front Of Frame

Courtesy of GENERAL MOTORS CORP.

Install the three push-pin retainers re-securing the lower fascia to the front of the frame.

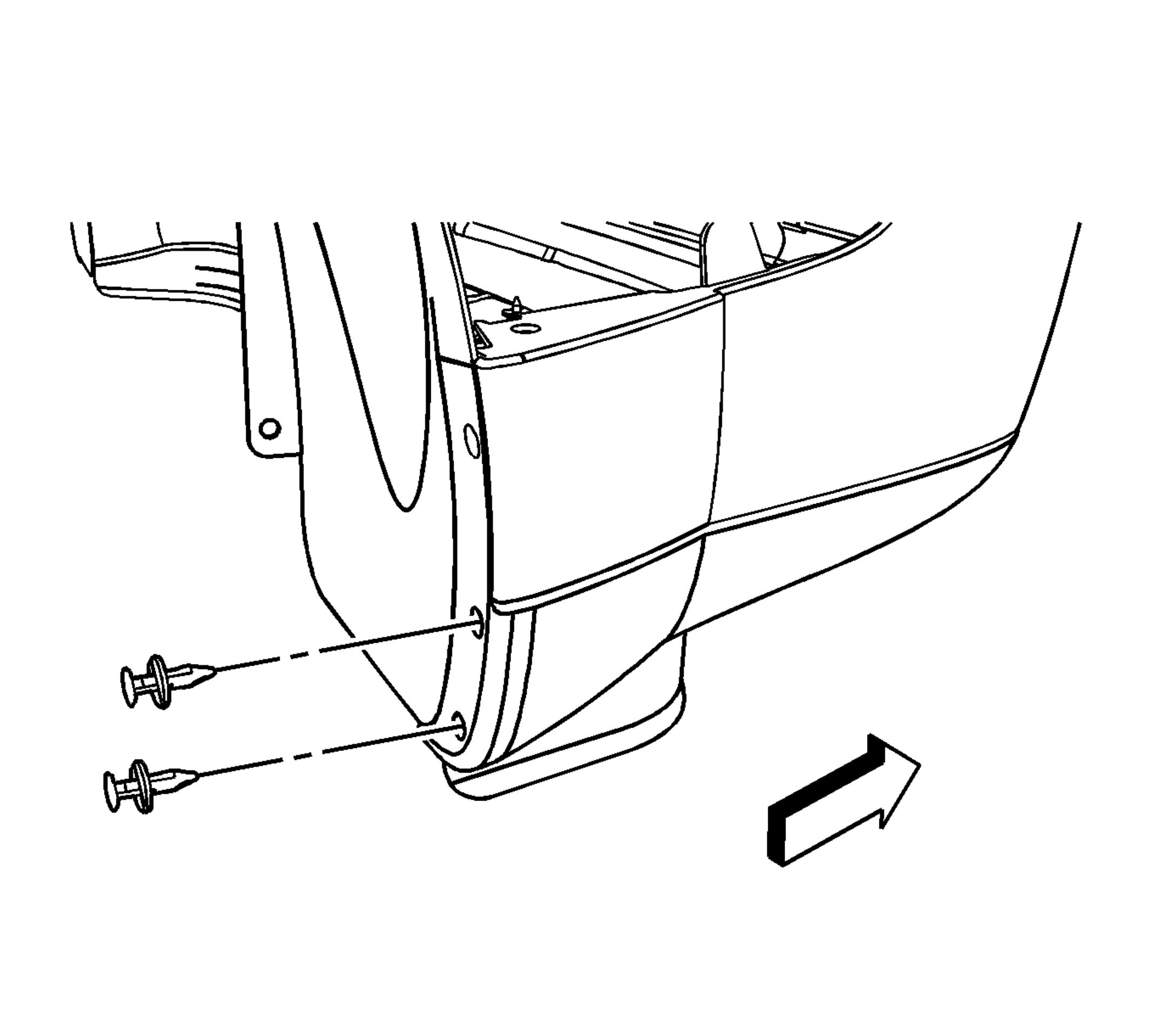

Fig 4: View Of Push-Pin Retainers - Front Wheelhouse Liner

Courtesy of GENERAL MOTORS CORP.

Install the four push pin retainers into the front wheelhouse liners.
