Front Bumper Fascia Emblem Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

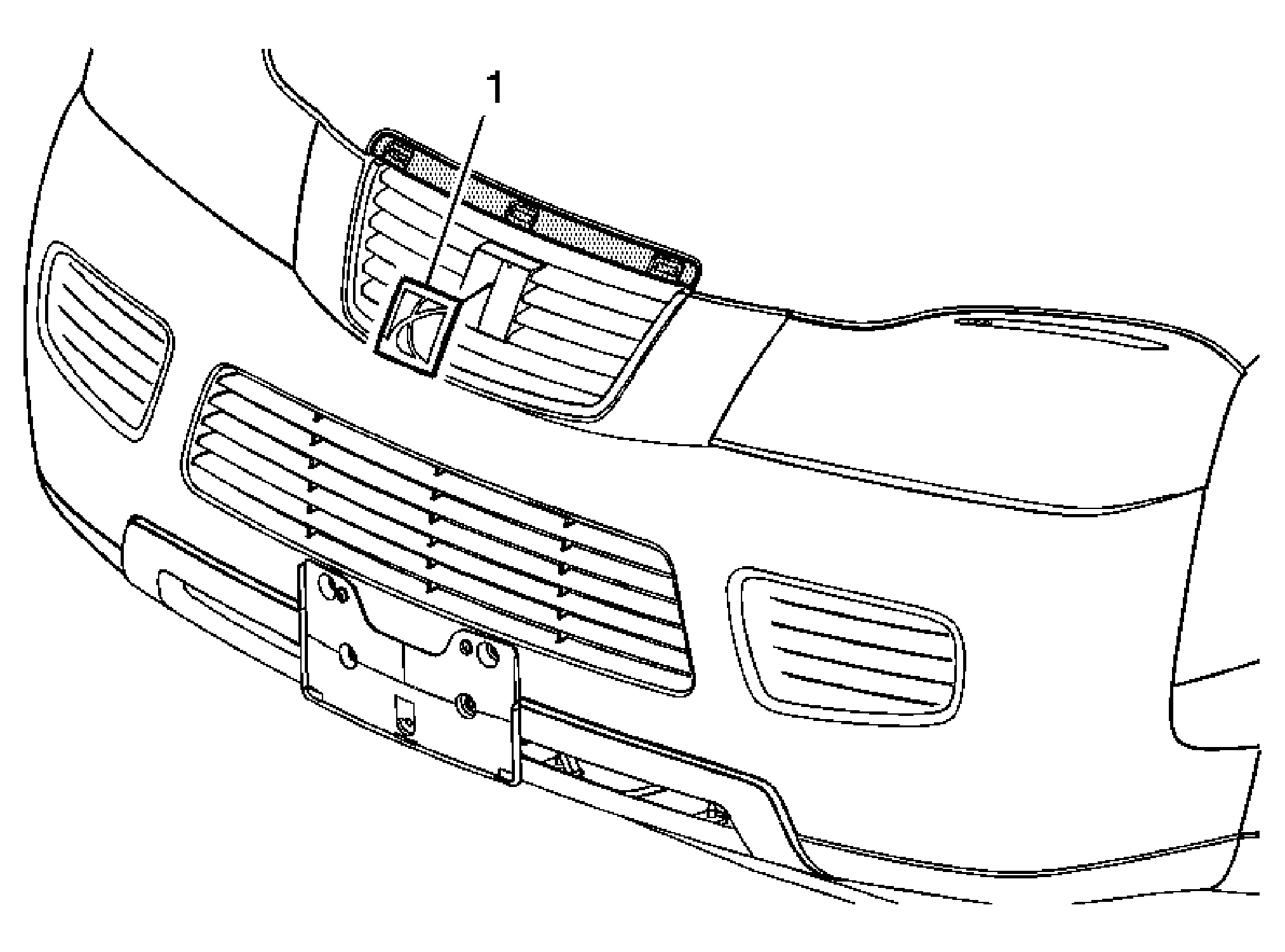

Fig 1: Front Bumper Fascia Emblem

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Bumper Fascia Emblem When removing protective liners from adhesive backed emblems, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 or equivalent to remove the old emblem. Clean all the adhesive residue from the front bumper fascia, wipe surface dry with a clean lint-free towel prior to installing new emblem. Peel the adhesive tape backing from the emblem ensuring no foreign matter comes in contact with the adhesive tape. Align the alignment pins on the back side of the emblem to the holes in the front grille, press firmly to complete adhesion.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Front Bumper Fascia Emblem

When removing protective liners from adhesive backed emblems, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Use a J 25070 or equivalent to remove the old emblem. Clean all the adhesive residue from the front bumper fascia, wipe surface dry with a clean lint-free towel prior to installing new emblem.
Peel the adhesive tape backing from the emblem ensuring no foreign matter comes in contact with the adhesive tape.
Align the alignment pins on the back side of the emblem to the holes in the front grille, press firmly to complete adhesion.
