DTC B0028, B0029, or B0030: Notes

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

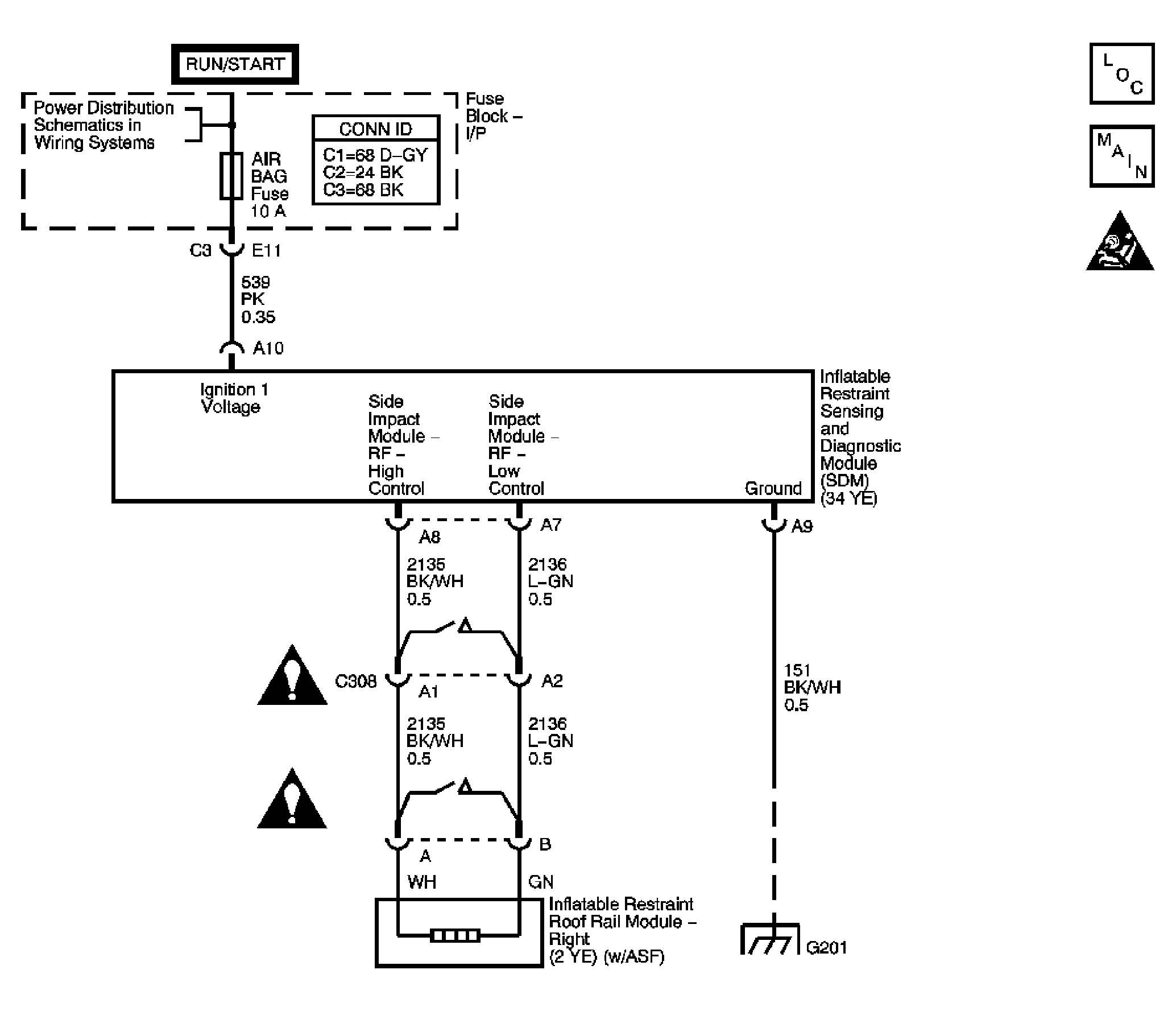

Fig 1: RF Side Impact Module Circuits
GM1335196Courtesy of GENERAL MOTORS CORP.
