Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 GMC C3500 HD, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove driver-side air bag module. See AIR BAG MODULES . Remove steering wheel. See STEERING WHEEL . Remove screws from lower steering column cover. Remove lower cover. Remove Torx screw from upper steering column cover. Remove upper cover.
  3. Remove wire harness straps from wire harness. See Fig 1. Disconnect SIR coil connector. Remove SIR coil assembly retaining ring. Remove SIR coil assembly. Remove wave washer.
  4. To install, reverse removal procedure. If necessary, center SIR coil assembly. See CENTERING SIR COIL ASSEMBLY  under ADJUSTMENTS. Tighten steering column cover screws and steering wheel nut to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

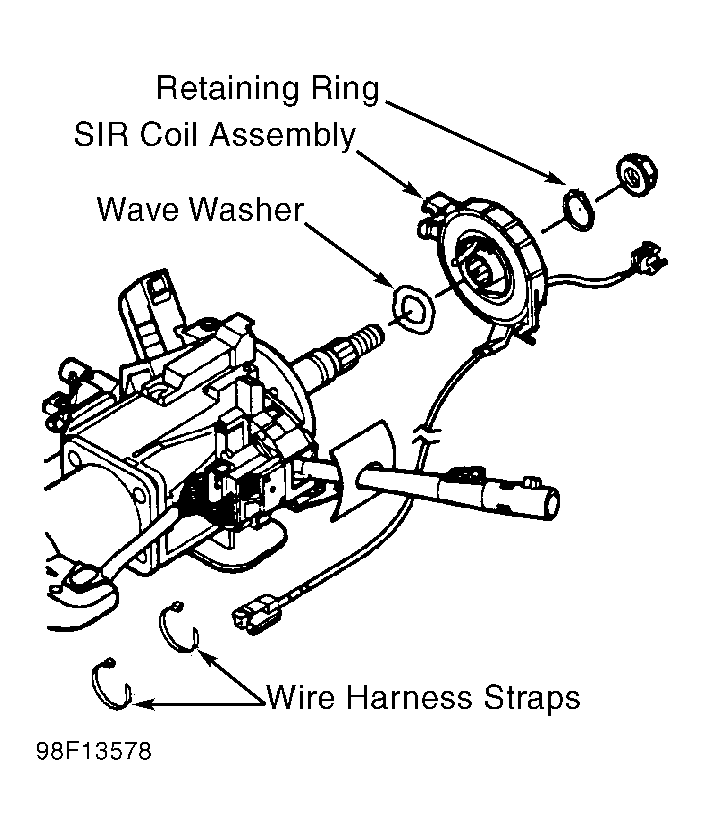

Fig 1: Identifying SIR Coil Assembly
G98F13578Courtesy of GENERAL MOTORS CORP.
