Point to Point Measurements
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Point-to-point measurements are for reference only. Use these measurements for diagnosis for validating. Point-to-point measurements do not afford the accuracy that 3-Dimensional measuring systems have. Point-to-point measurements are duplicated with tram bar pointers set at equal lengths. All holes, slots and fasteners are measured to the center.

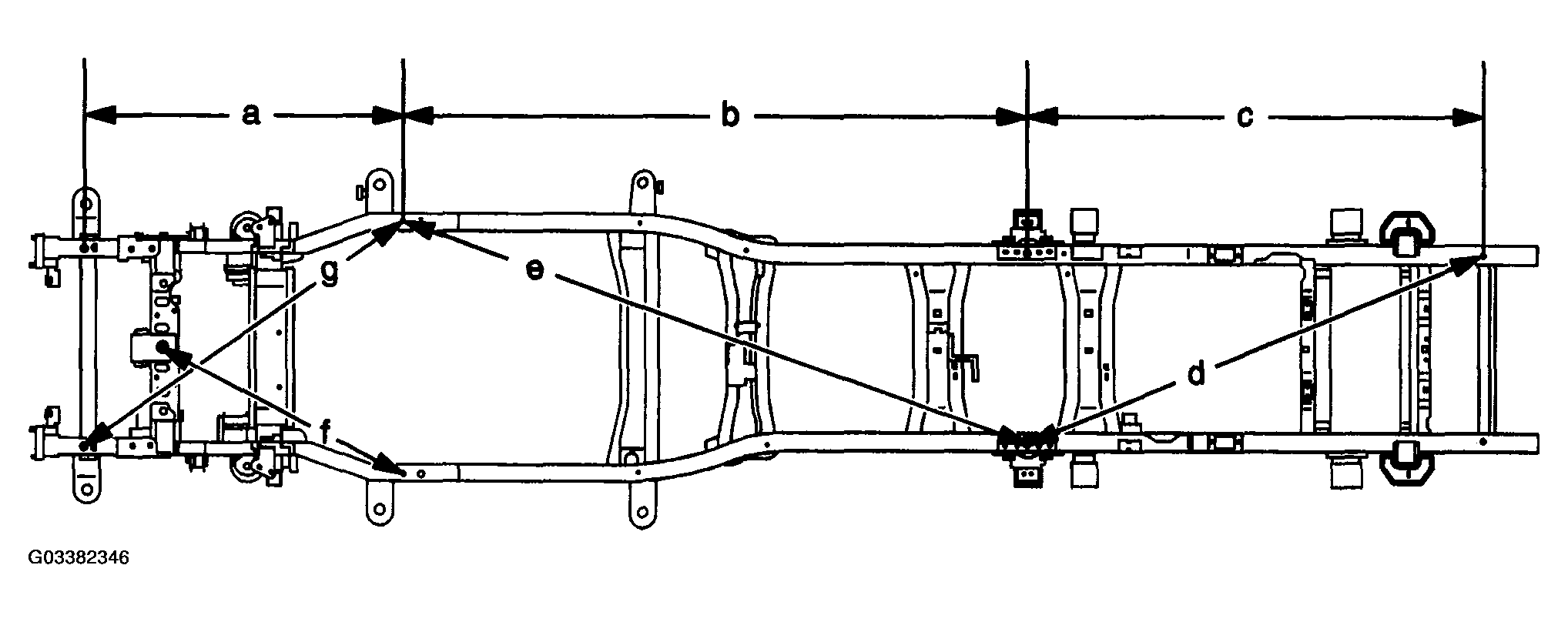

Fig 1: Identifying Dimension Measuring Points - Frame (3500 Reg Cab Comm Chassis Lng WB 2W/4) (2 Of 2)
DIMENSIONS - FRAME (3500 REG CAB COMM CHASSIS LNG WB 2W/4)
| Location | Point to Point |
|---|---|
| a | 1335 mm |
| b | 2603 mm |
| c | 1902 mm |
| d | 2055 mm |
| e | 2757 mm |
| f | 1124 mm |
| g | 1626 mm |
