Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper. Refer to BUMPER REPLACEMENT-FRONT (OLD STYLE) or BUMPER REPLACEMENT-FRONT (NEW STYLE GMC) or BUMPER REPLACEMENT - FRONT (NEW STYLE CHEVROLET) .
  2. Remove the tow hook bolts from the frame rail.
  3. Remove the tow hook from the vehicle.

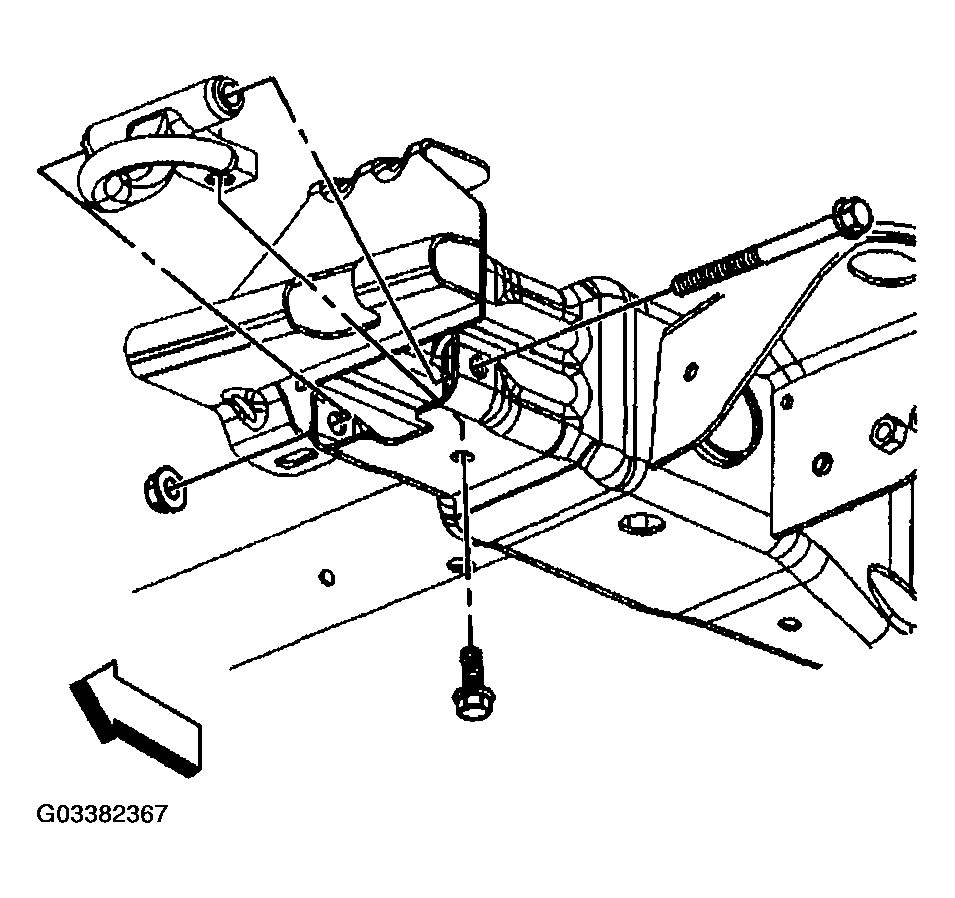

    Fig 1: Removing Tow Hook Bolts From Frame Rail
    G03382367Courtesy of GENERAL MOTORS CORP.
