C105 Transmission Harness to LF Wheel Speed Sensor

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

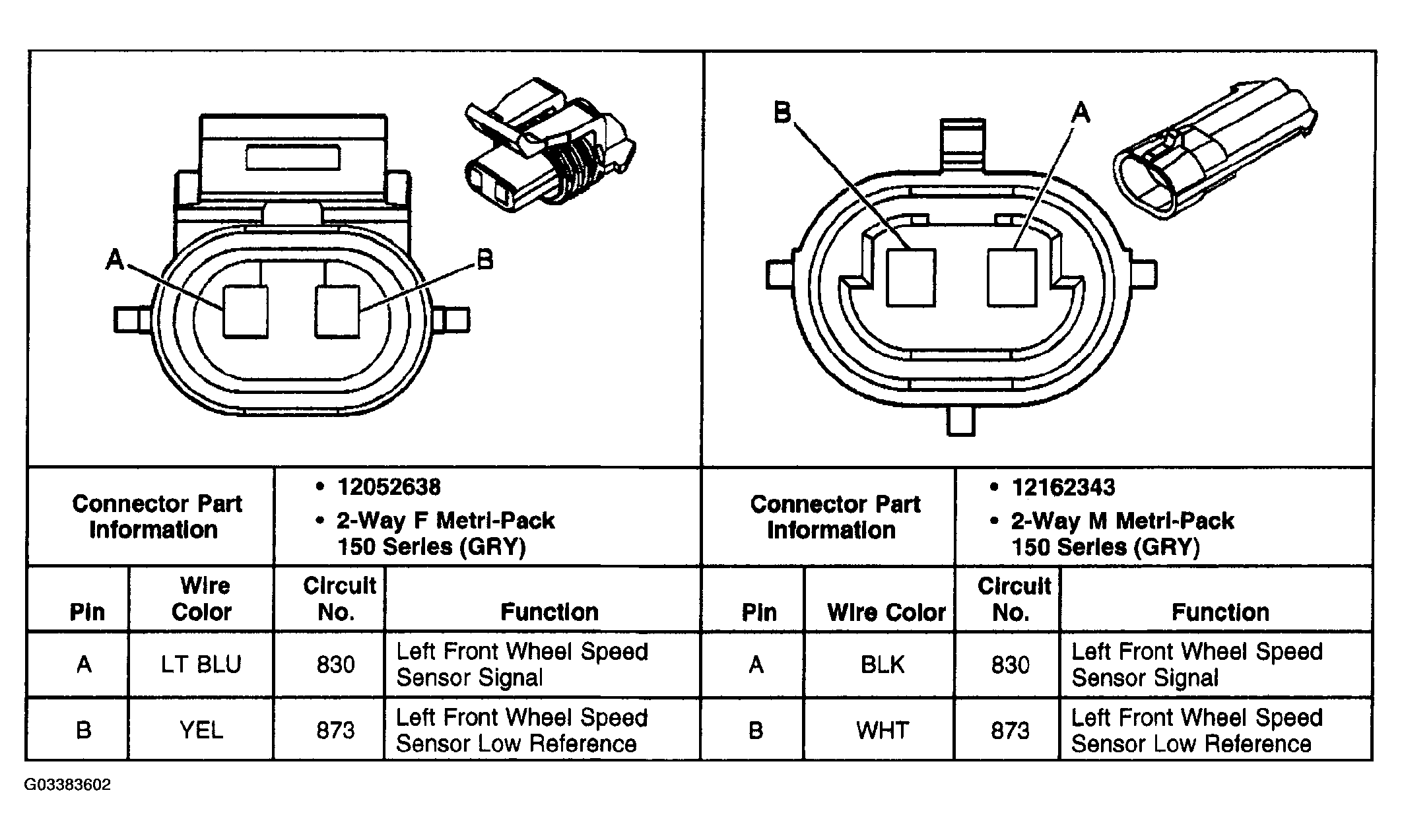

Fig 1: Identifying C105 Transmission Harness To LF Wheel Speed Sensor Connector Terminals
G03383602Courtesy of GENERAL MOTORS CORP.
