Dimensions - Frame (1500 Yukon/Tahoe/Escalade 2WD/4WD)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Avalanche, 2003 Cadillac Escalade EXT, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

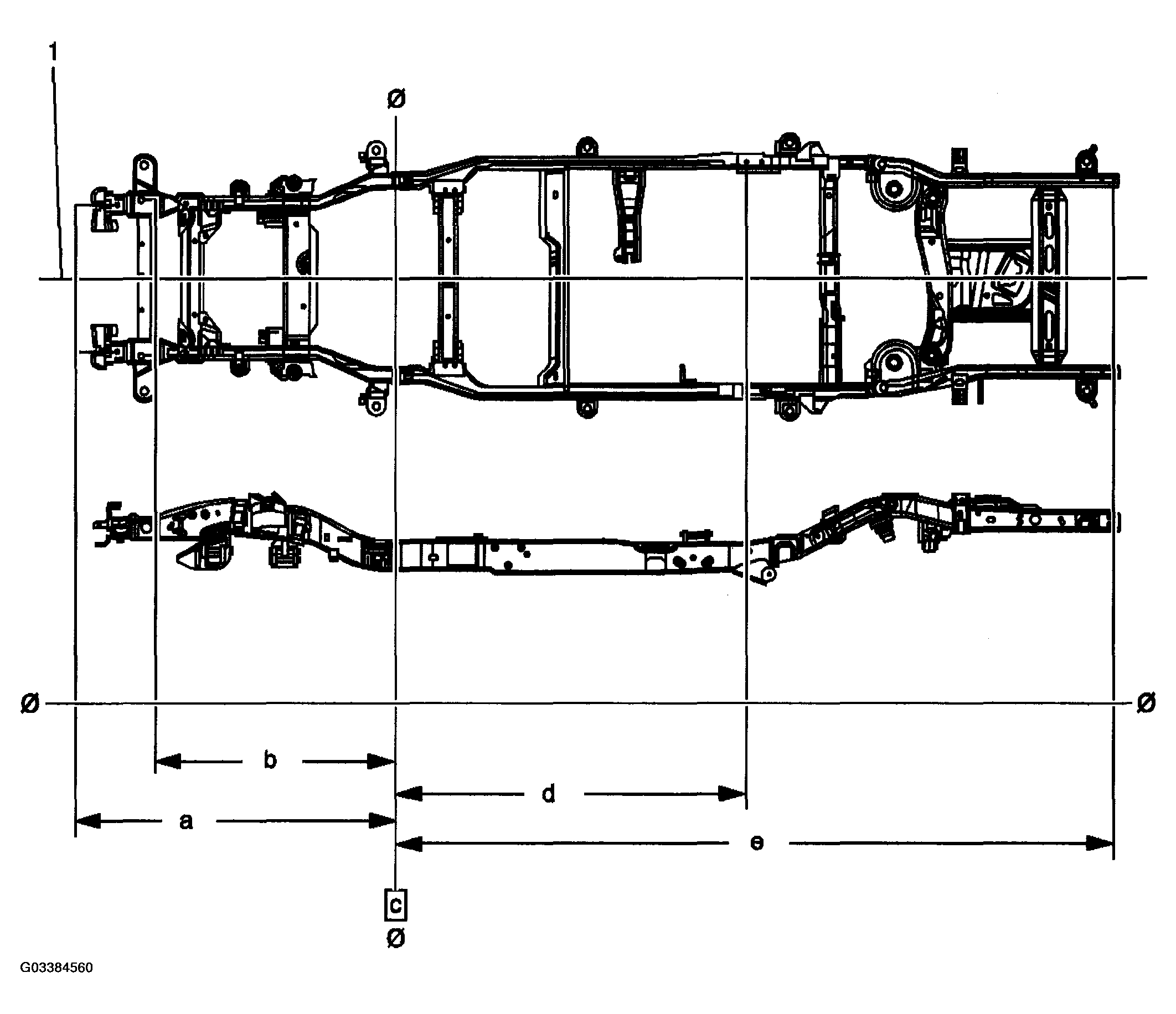

DIMENSIONS - FRAME (1500 YUKON/TAHOE/ESCALADE 2WD/4WD)
| Description | Location | Length | Width | Height mm |
|---|---|---|---|---|
| 13 mm tow hook attachment | a | 1441 mm | 388 mm | 562 mm |
| 32 mm hole | b | 1327 mm | 411 mm | 552 mm |
| 17 mm hole | c | 0 mm | 522 mm | 382 mm |
| 20 x 16 mm slot | d | 1471 mm | 601 mm | 351 mm |
| 19.5 mm hole | e | 3214 mm | 500 mm | 574 mm |
| All dimensions are measured in millimeters, from a zero line, center line, and a common datum. All dimensions are symmetrical, unless otherwise specified. | ||||
