Dimensions - Frame (1500 Tahoe/Yukon/Escalade 2WD/4WD)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Avalanche, 2003 Cadillac Escalade EXT, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
Point-to-point measurements are for reference only. Use these measurements for diagnosis or for validating. Point-to-point measurements do not afford the accuracy that 3-Dimensional measuring systems have. Point-to-point measurements are duplicated with tram bar pointers set at equal lengths. All holes, slots and fasteners are measured to the center.

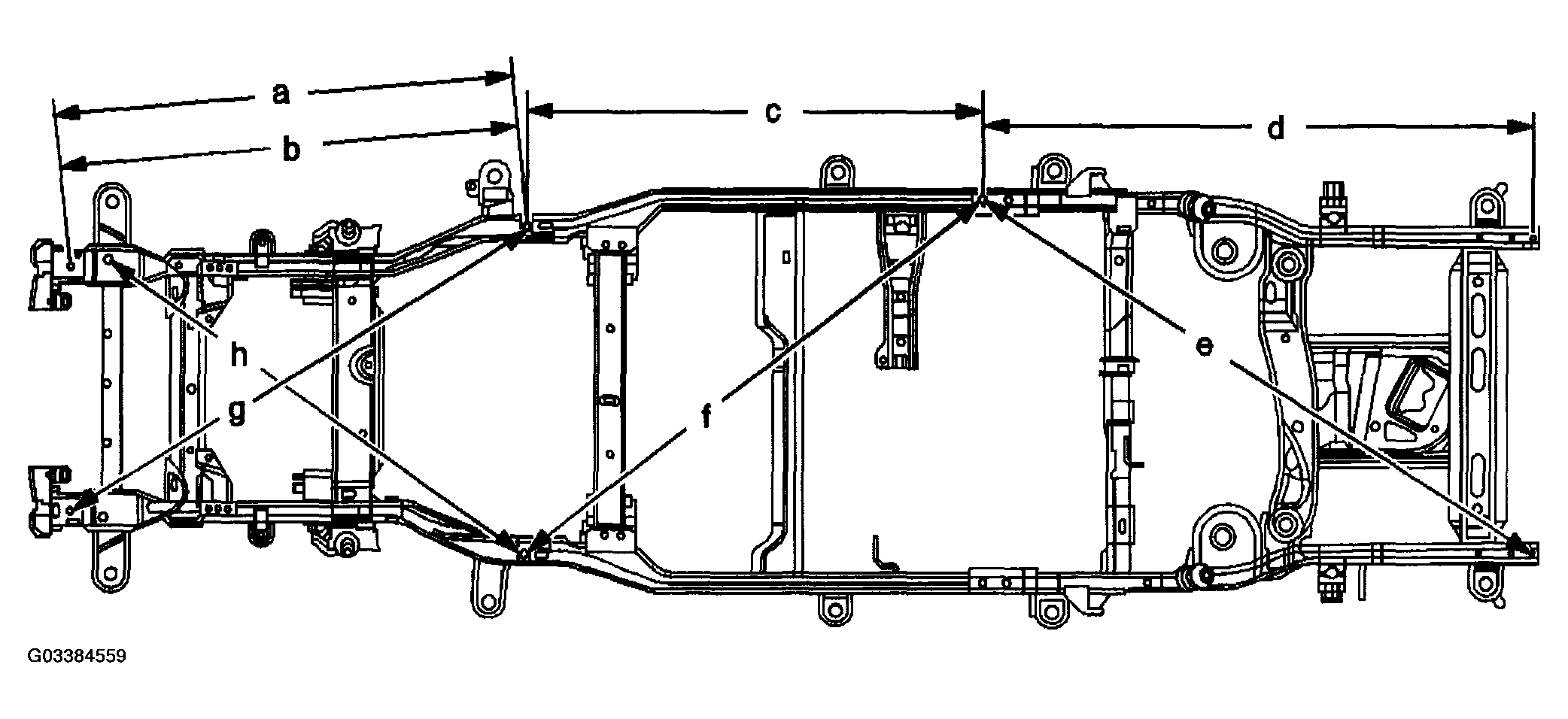

DIMENSIONS - FRAME (1500 TAHOE/YUKON/ESCALADE 2WD/4WD)
| Location | Point to Point |
|---|---|
| a | 1459 mm |
| b | 1343 mm |
| c | 1475 mm |
| d | 1760 mm |
| e | 2073 mm |
| f | 1851 mm |
| g | 1714 mm |
| h | 1632 mm |
