Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the air baffle bolts.
  3. Remove the air baffle.

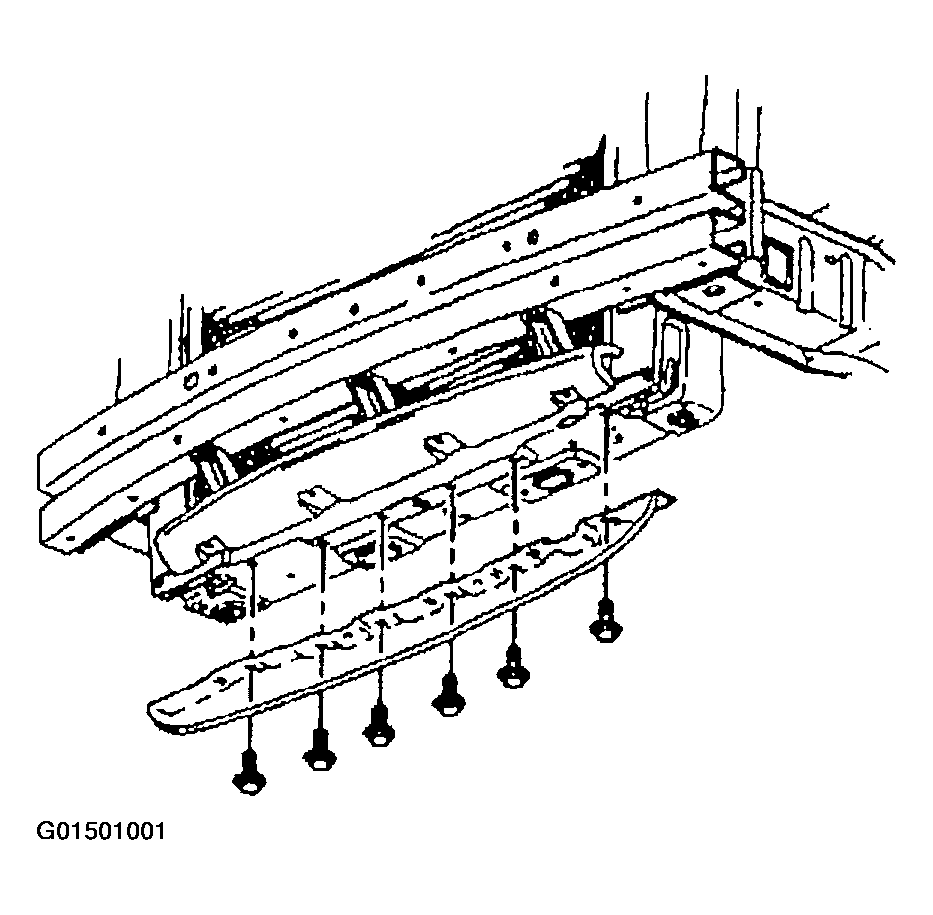

Fig 1: Removing Air Baffle Bolts And Air Baffle
G01501001Courtesy of GENERAL MOTORS CORP.
