Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the electrical center cover.
  2. Locate the relay. Refer to UNDERHOOD FUSE BLOCK to locate the electrical center where the relay exists.
    IMPORTANT:
    • Always note the orientation of the relay.
    • Ensure that the electrical center is secure, as not to put added stress on the wires or terminals.
  3. Using the J 43244  (1) position the tool on opposing corners of the relay (2).
    NOTE: Use J43244 to pull the relay straight out from the electrical center terminals. The use of pliers or a flat bladed tool could damage the electrical center.
  4. Remove the relay (2) from the electrical center.

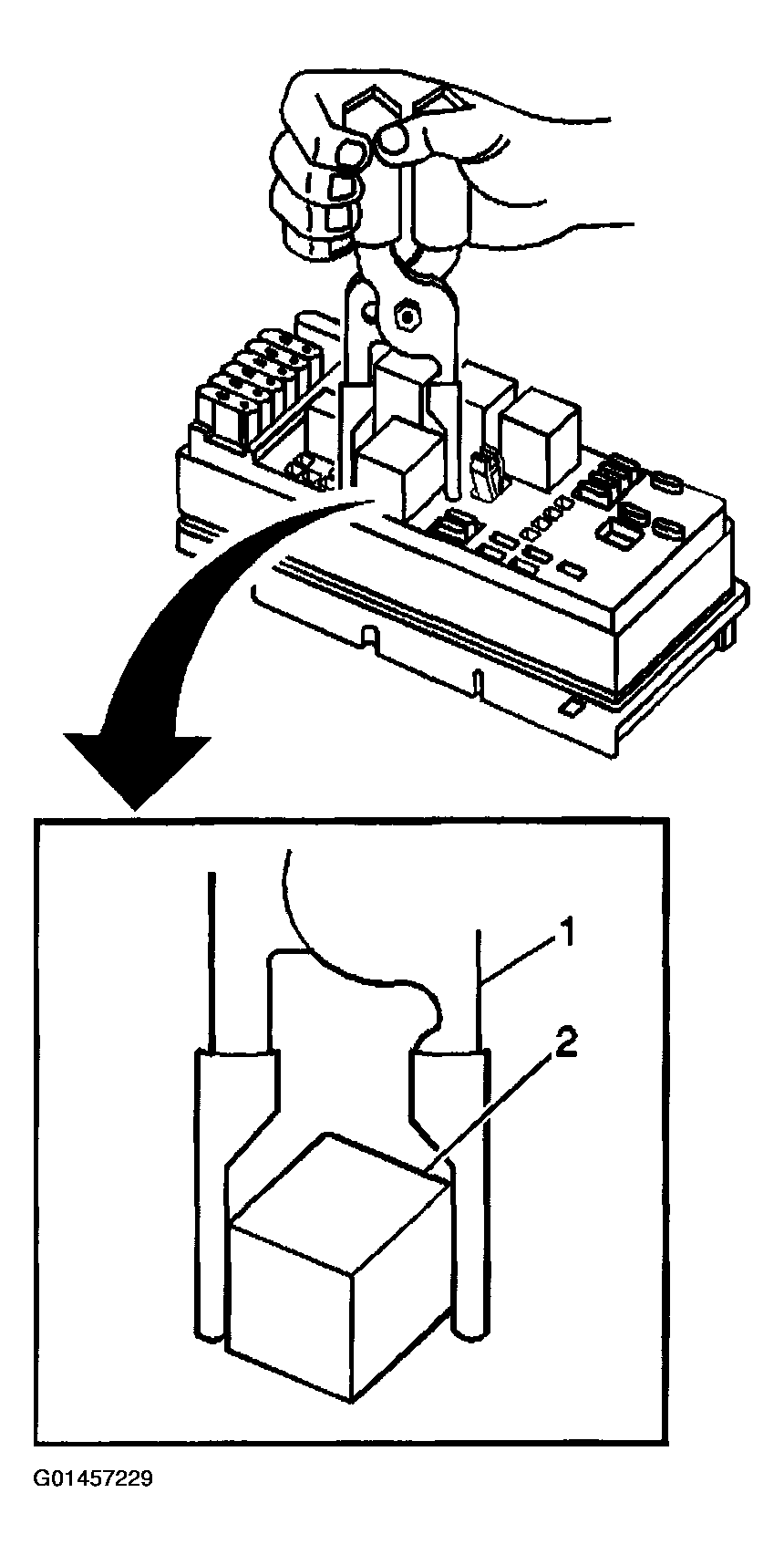

    Fig 1: Pulling Relay Straight Out From Electrical Center Terminals Using J 43244
    G01457229Courtesy of GENERAL MOTORS CORP.
