Removal & Installation (Passenger-side)

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove instrument panel trim pad. See INSTRUMENT PANEL TRIM PAD . Remove passenger-side air bag module mounting bolts. Remove passenger-side air bag module from instrument panel cross-beam. See Fig 1.
To install, reverse removal procedure. Tighten passenger-side air bag module bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

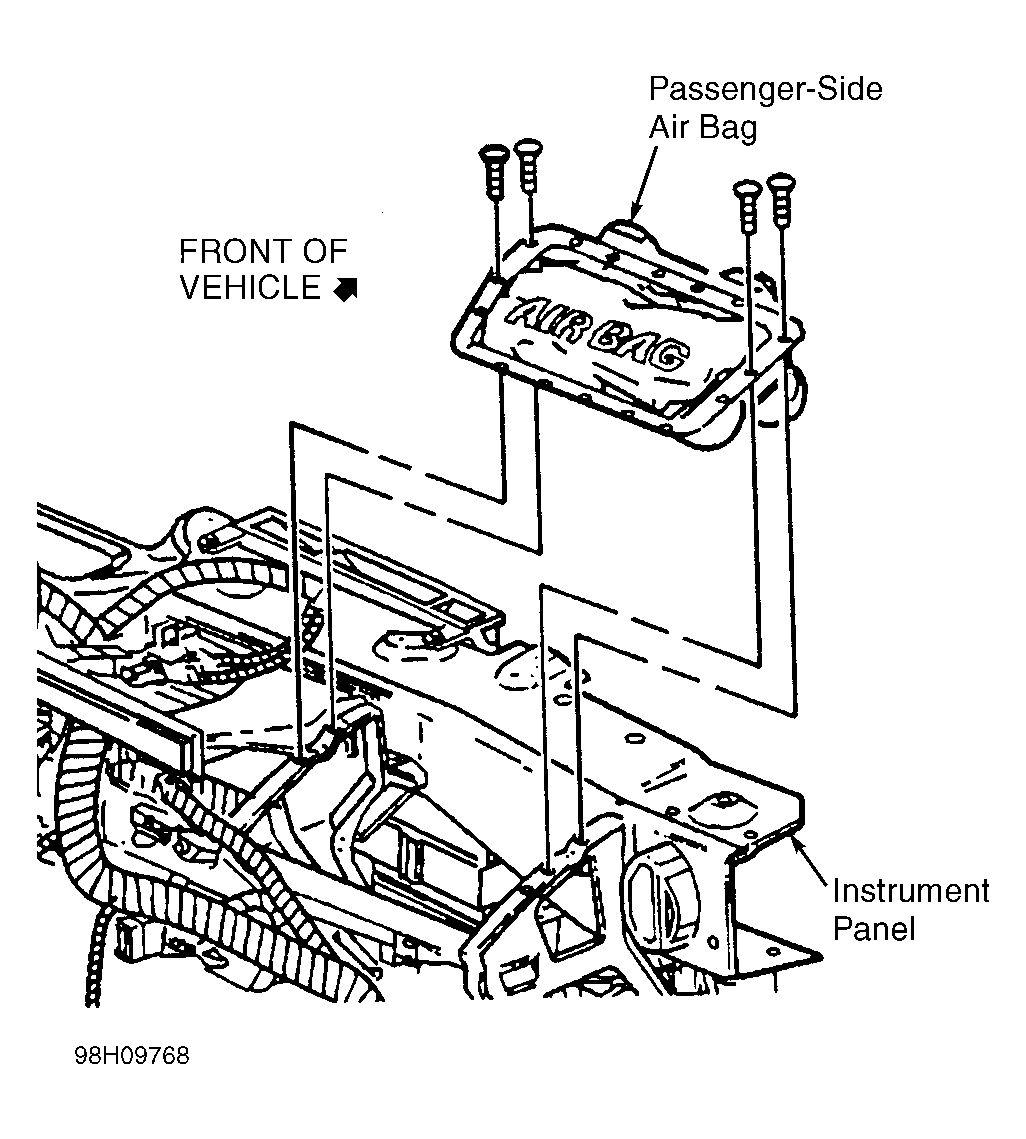

Fig 1: Identifying Passenger-side Air Bag Module

Courtesy of GENERAL MOTORS CORP.
