Front Carrier and Sun Gear Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

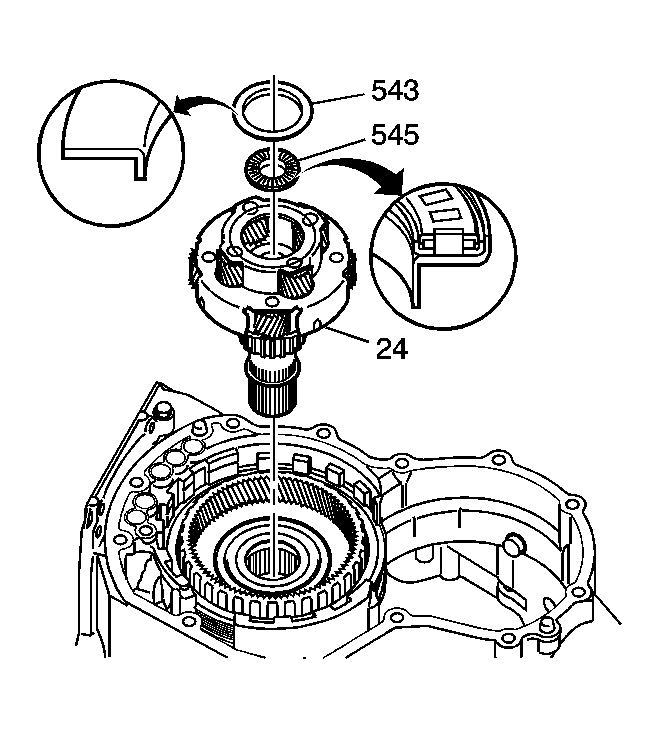

    Fig 1: View Of Front Carrier & Sun Gear Assembly
    GM749497Courtesy of GENERAL MOTORS CORP.
  1. Install the front carrier and sun gear assembly (24).
  2. Install the front sun gear thrust bearing (545) and the front sun gear thrust bearing race (543).
