Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear bumper impact bar to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the rear bumper impact bar.

    Tighten

    Tighten the rear bumper impact bar bolts to 25 N.m (18 lb ft).

  3. Install the rear bumper energy absorber. Refer to Energy Absorber Replacement - Rear .
  4. Install the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .

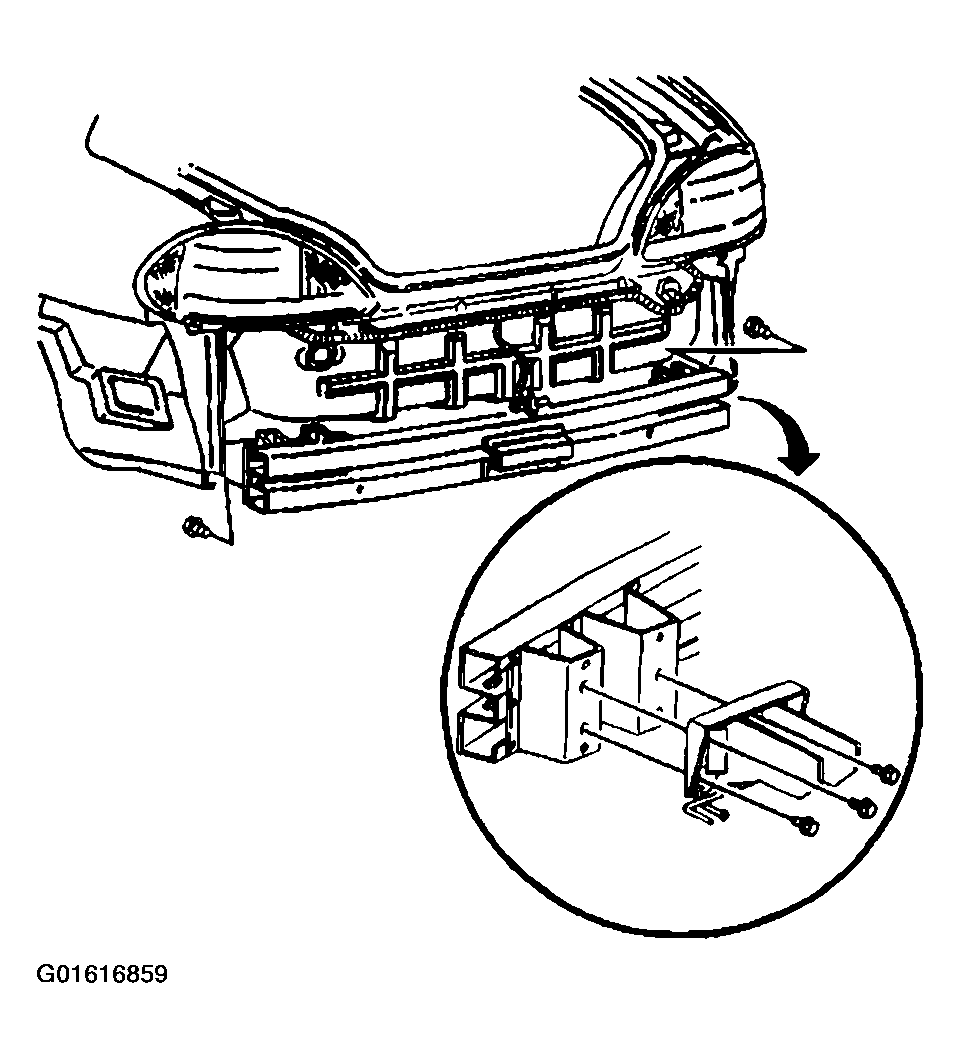

    Fig 1: Rear Bumper Impact Bar
    G01616859Courtesy of GENERAL MOTORS CORP.
