Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the bottom edge of the grille up and out in order to release the lower tabs.
  2. Pull down on the grille in order to release the upper grille tabs from the front bumper fascia.
  3. Remove the grille from the front bumper fascia.

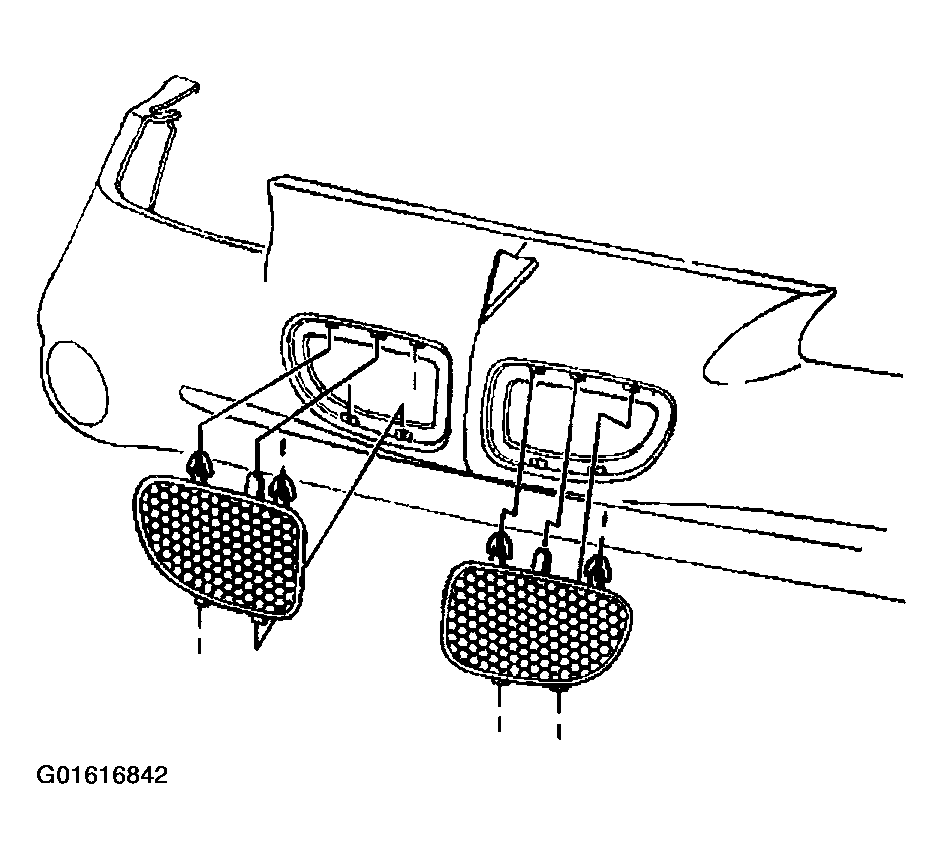

    Fig 1: Front Bumper Fascia Grille
    G01616842Courtesy of GENERAL MOTORS CORP.
