Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the grille to the front bumper fascia.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws the grille.

    Tighten

    Tighten the grille screws to 2 N.m (18 lb in).

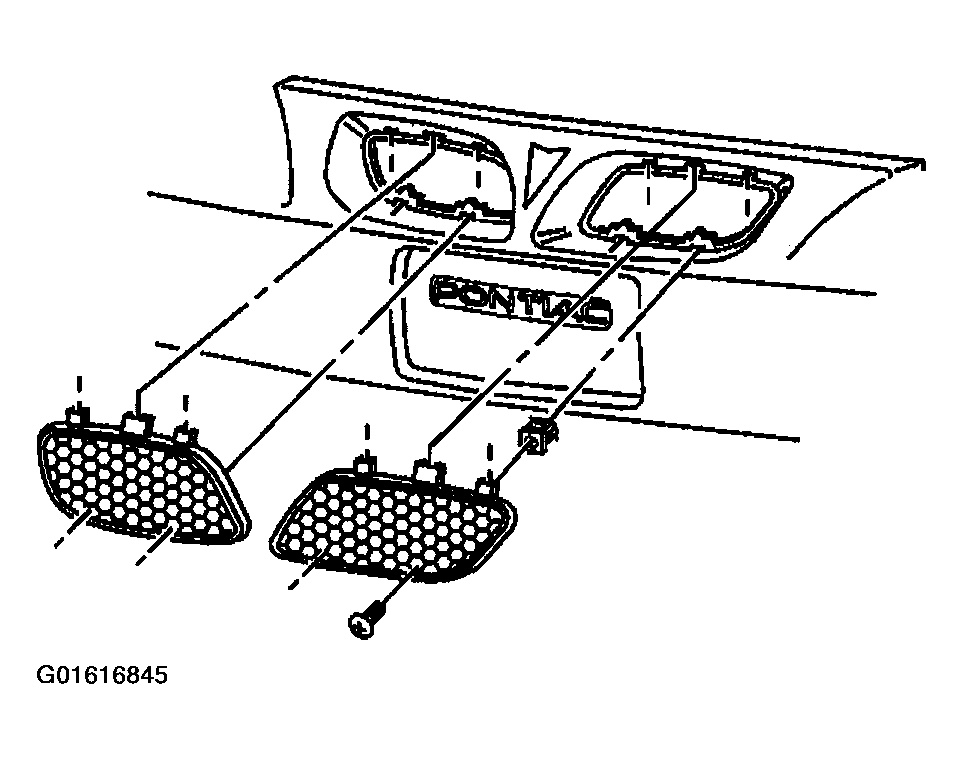

    Fig 1: Lower Front Bumper Fascia Grille
    G01616845Courtesy of GENERAL MOTORS CORP.
